SKU: UCPX.07-23

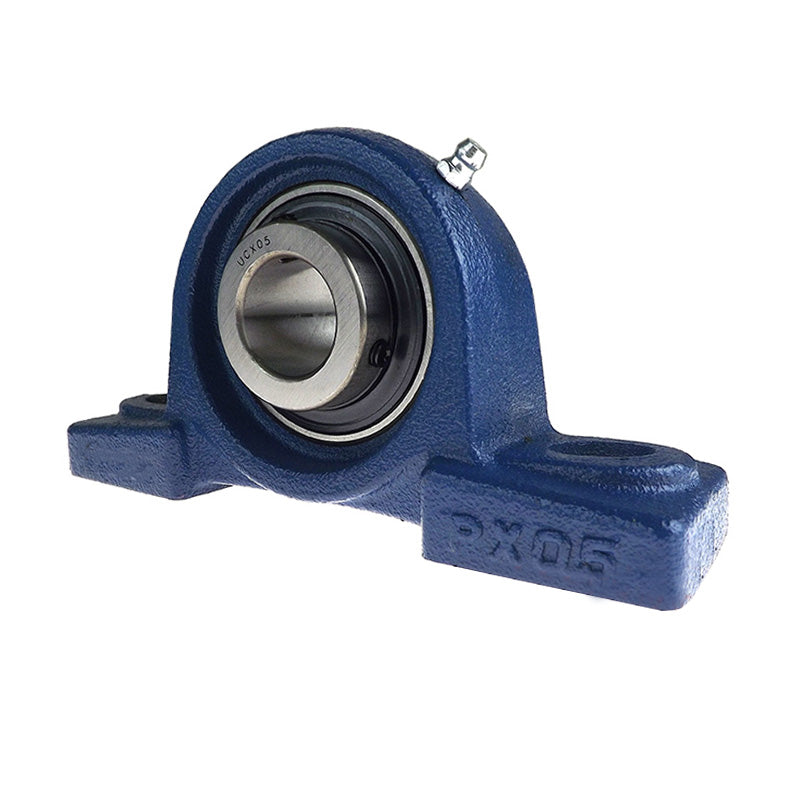

UCPX07-23 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-7/16 inch Bore Insert
UCPX07-23 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-7/16 inch Bore Insert
Regular price
Rs. 3,430.64
ex VAT
Regular price
Sale price
Rs. 3,430.64
ex VAT
Equivalent to: MP1-7/16
In stock
Price Break
10+
Rs. 3,053.27
19+
Rs. 2,881.74
29+
Rs. 2,847.43
39+
Rs. 2,813.12
49+
Rs. 2,778.82
74+
Rs. 2,744.51
99+
Rs. 2,572.98
199+
Rs. 2,538.67
249+
Rs. 2,504.37
499+
Rs. 2,470.06
999+
Rs. 2,401.45
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MP1-7/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| h | 54mm |
| a | 203mm |
| e | 144mm |
| b | 57mm |
| s2 | 30mm |
| s1 | 17mm |
| g | 22mm |
| w | 105mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.7 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
