SKU: UCPX.06-18

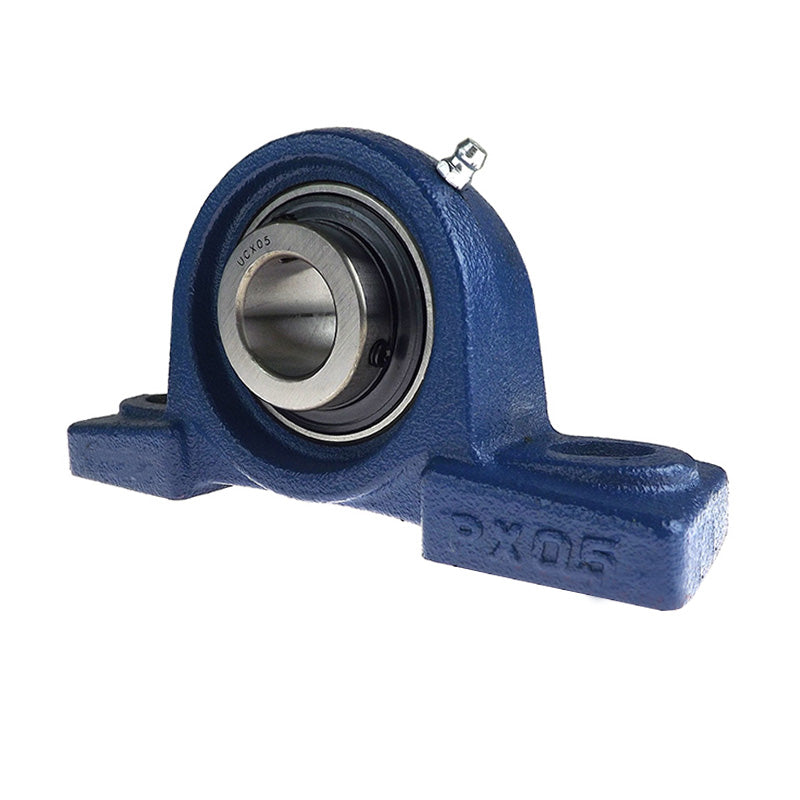

UCPX06-18 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
UCPX06-18 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
Regular price
Rs. 3,105.18
ex VAT
Regular price
Sale price
Rs. 3,105.18
ex VAT
Equivalent to: MP1-1/8
In stock
Price Break
10+
Rs. 2,763.61
19+
Rs. 2,608.35
29+
Rs. 2,577.30
39+
Rs. 2,546.25
49+
Rs. 2,515.20
74+
Rs. 2,484.14
99+
Rs. 2,328.89
199+
Rs. 2,297.83
249+
Rs. 2,266.78
499+
Rs. 2,235.73
999+
Rs. 2,173.63
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MP1-1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 47.6mm |
| a | 175mm |
| e | 127mm |
| b | 57mm |
| s2 | 25mm |
| s1 | 17mm |
| g | 20mm |
| w | 94mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt Size | M12 |
| Weight | 2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
