SKU: UCPLE208-SNR

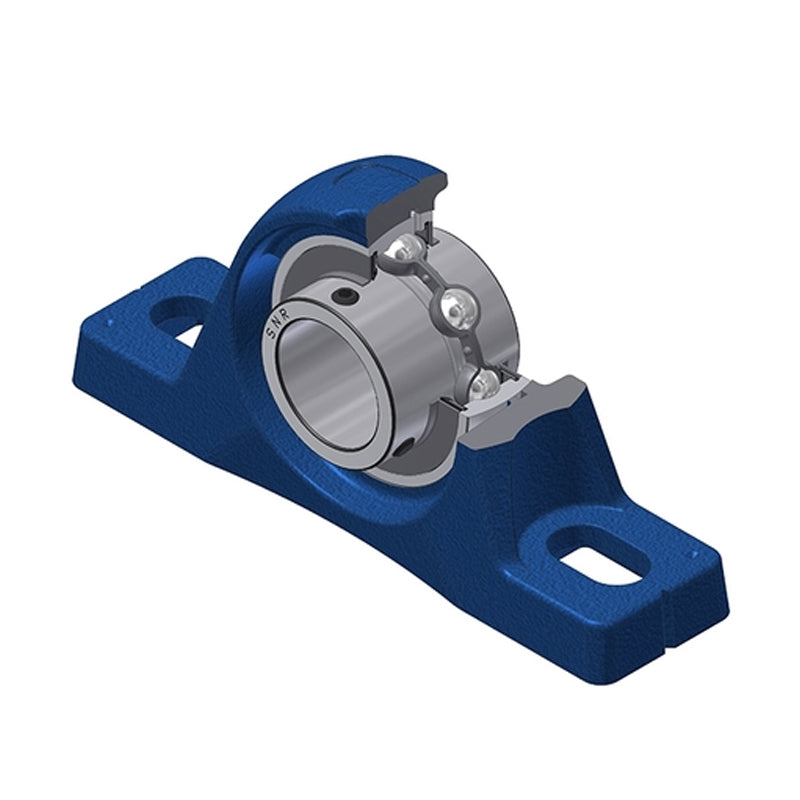

SNR UCPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
SNR UCPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
Regular price
Rs. 4,168.29
Regular price
Sale price
Rs. 4,168.29
Taxes included.
In stock
Price Break
10+
Rs. 3,709.78
19+
Rs. 3,501.36
29+
Rs. 3,459.68
39+
Rs. 3,418.00
49+
Rs. 3,376.31
74+
Rs. 3,334.63
99+
Rs. 3,126.22
199+
Rs. 3,084.53
249+
Rs. 3,042.85
499+
Rs. 3,001.17
999+
Rs. 2,917.80
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 137.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 51mm |
| A1 | 34.5mm |
| B | 49.2mm |
| H | 49.2mm |
| H1 | 18.5mm |
| H2 | 98.5mm |
| J | 137.5mm |
| L | 180.5mm |
| N | 14mm |
| N1 | 24.5mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.94 kg |
