SKU: UCPLE207-SNR

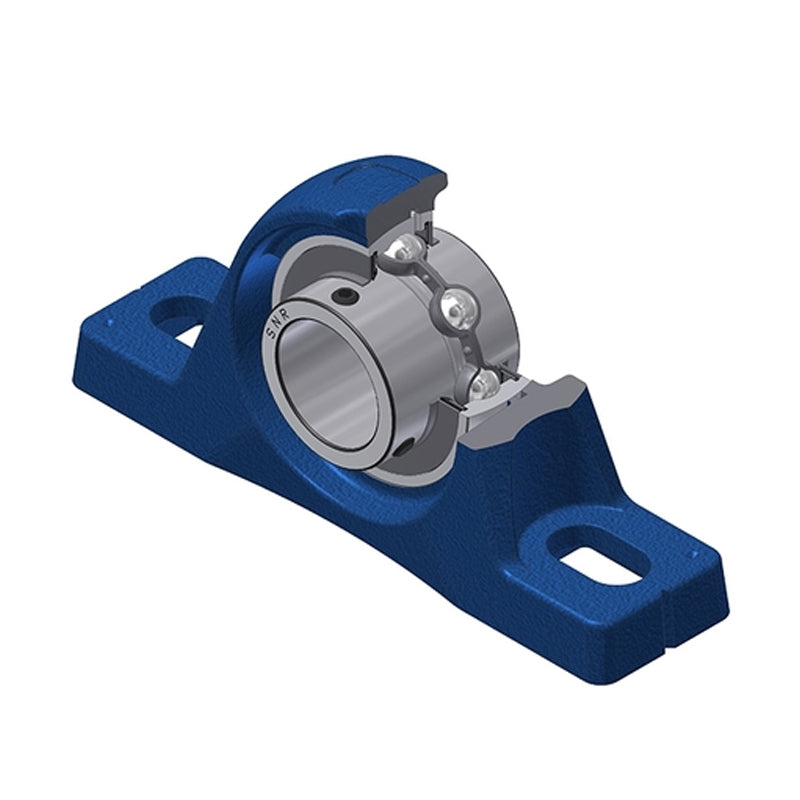

SNR UCPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
SNR UCPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,839.28
Regular price
Sale price
Rs. 3,839.28
Taxes included.
In stock
Price Break
10+
Rs. 3,416.96
19+
Rs. 3,225.00
29+
Rs. 3,186.60
39+
Rs. 3,148.21
49+
Rs. 3,109.82
74+
Rs. 3,071.42
99+
Rs. 2,879.46
199+
Rs. 2,841.07
249+
Rs. 2,802.67
499+
Rs. 2,764.28
999+
Rs. 2,687.50
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 129mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 44.5mm |
| A1 | 30.5mm |
| B | 42.9mm |
| H | 46.2mm |
| H1 | 16mm |
| H2 | 91.5mm |
| J | 129mm |
| L | 166mm |
| N | 14mm |
| N1 | 21.5mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.57 kg |
