SKU: UCPH210

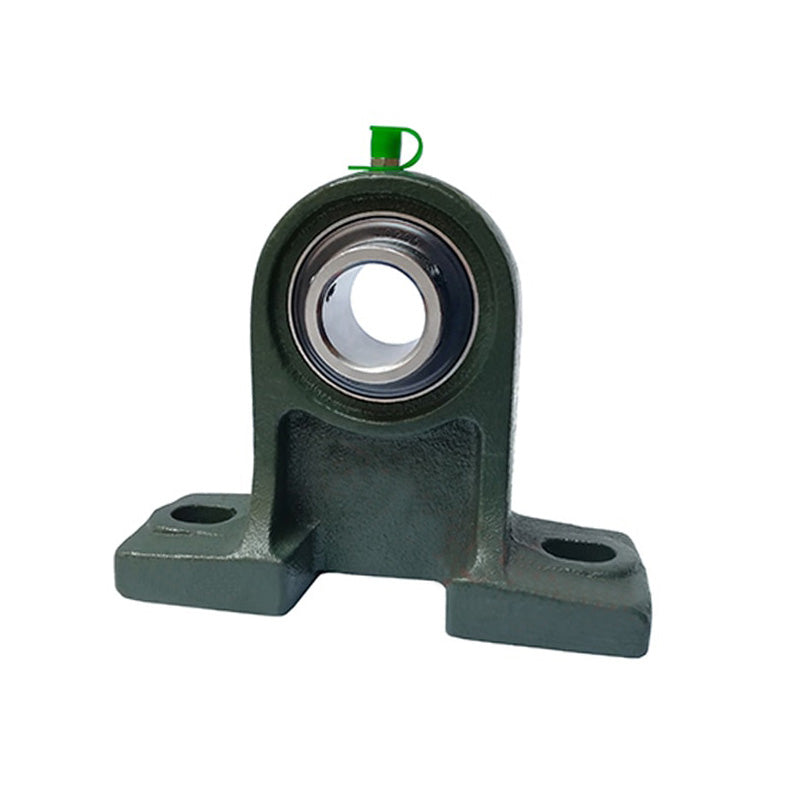

UCPH210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
UCPH210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
Regular price
Rs. 5,910.63
Regular price
Sale price
Rs. 5,910.63
Taxes included.
In stock
Price Break
10+
Rs. 5,260.46
19+
Rs. 4,964.93
29+
Rs. 4,905.82
39+
Rs. 4,846.72
49+
Rs. 4,787.61
74+
Rs. 4,728.50
99+
Rs. 4,432.97
199+
Rs. 4,373.87
249+
Rs. 4,314.76
499+
Rs. 4,255.65
999+
Rs. 4,137.44
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCPH
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 110mm |
| a | 205mm |
| e | 159mm |
| b | 70mm |
| s1 | 20mm |
| s2 | 23mm |
| g | 21mm |
| w | 165mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no | UC210 |
| Housing no | PH210 |
| Weight | 2.97 kg |
