SKU: UCPH208-SNR

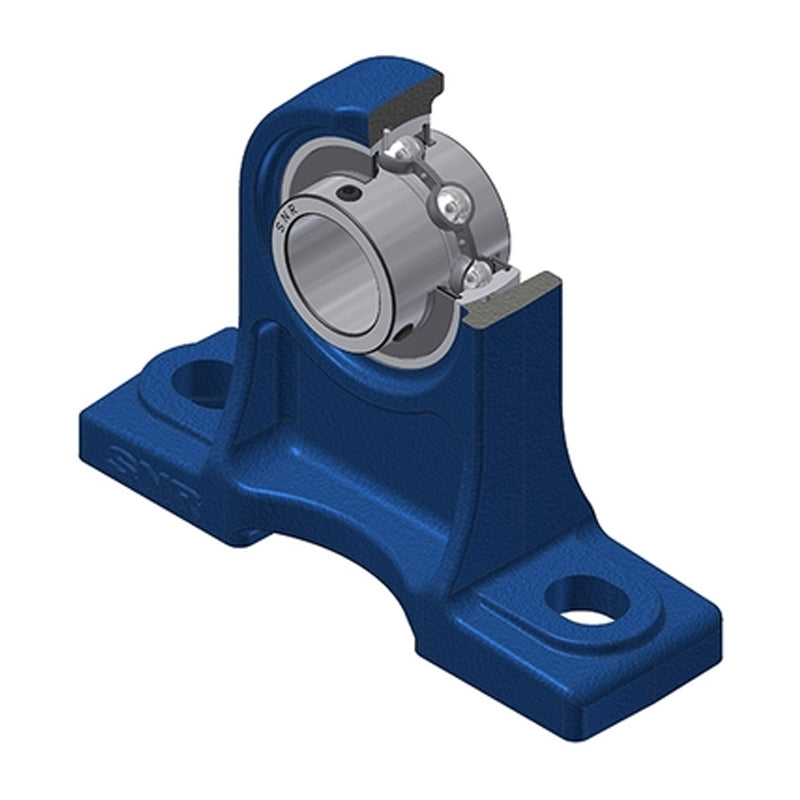

SNR UCPH208 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
SNR UCPH208 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,950.49
Regular price
Sale price
Rs. 4,950.49
Taxes included.
In stock
Price Break
10+
Rs. 4,405.94
19+
Rs. 4,158.41
29+
Rs. 4,108.91
39+
Rs. 4,059.40
49+
Rs. 4,009.90
74+
Rs. 3,960.39
99+
Rs. 3,712.87
199+
Rs. 3,663.36
249+
Rs. 3,613.86
499+
Rs. 3,564.35
999+
Rs. 3,465.34
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPH
- Bolt Hole Centres:
- 49.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 70mm |
| A1 | 34mm |
| B | 49.2mm |
| H | 100mm |
| H1 | 19mm |
| H2 | 149mm |
| J | 137mm |
| L | 184mm |
| L1 | 58mm |
| N | 17mm |
| N1 | 25mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.84 kg |
