SKU: UCPH204N-SNR

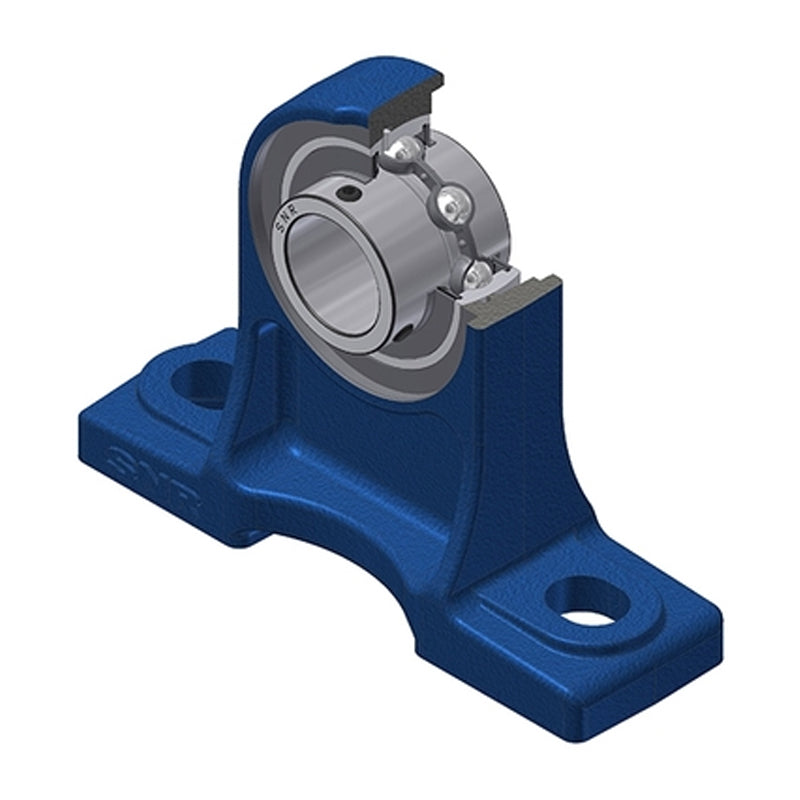

SNR UCPH204N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
SNR UCPH204N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 8,506.85
Regular price
Sale price
Rs. 8,506.85
Taxes included.
In stock
Price Break
5+
Rs. 8,421.78
10+
Rs. 8,081.51
20+
Rs. 7,911.37
50+
Rs. 7,656.17
100+
Rs. 7,486.03
500+
Rs. 7,060.69
1000+
Rs. 5,954.80
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCPH
- Bolt Hole Centres:
- 31mm
Technical
Technical

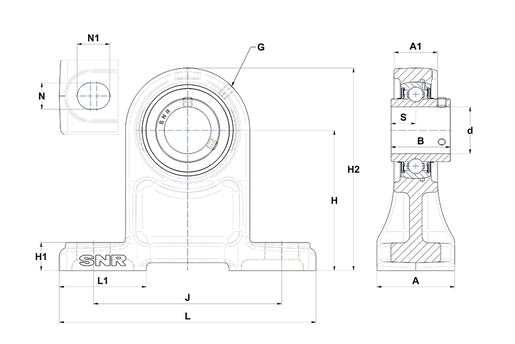

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 40mm |
| A1 | 22mm |
| B | 31mm |
| H | 70mm |
| H1 | 15mm |
| H2 | 101mm |
| J | 95mm |
| L | 127mm |
| L1 | 48mm |
| N | 13mm |
| N1 | 19mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.87 kg |
