SKU: UCPH201

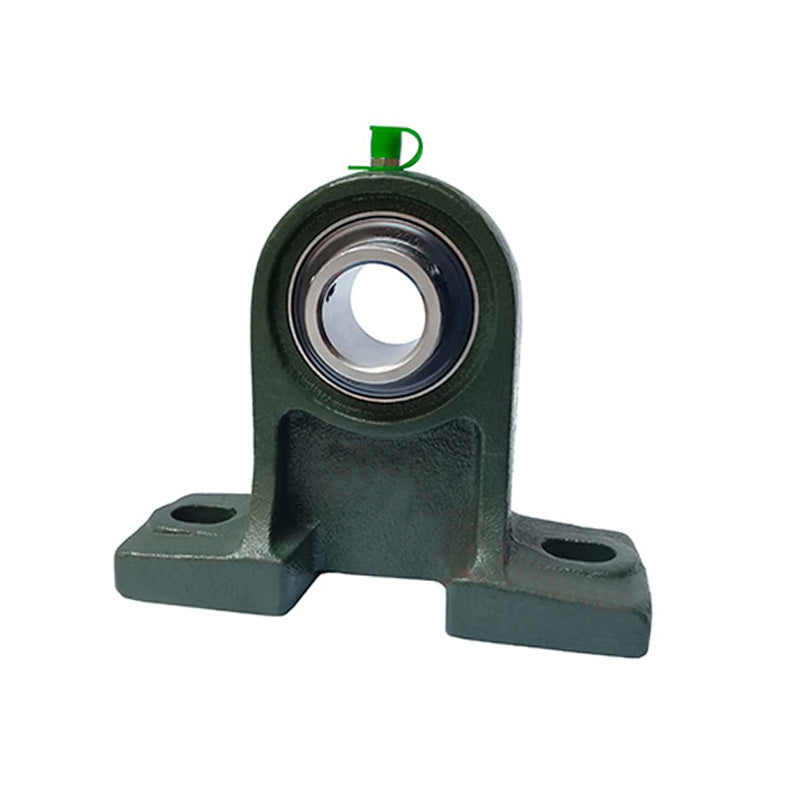

UCPH201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Insert
UCPH201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Insert
Regular price
Rs. 1,095.84
Regular price
Sale price
Rs. 1,095.84
Taxes included.
In stock
Price Break
10+
Rs. 975.30
19+
Rs. 920.51
29+
Rs. 909.55
39+
Rs. 898.59
49+
Rs. 887.63
74+
Rs. 876.67
99+
Rs. 821.88
199+
Rs. 810.92
249+
Rs. 799.96
499+
Rs. 789.00
999+
Rs. 767.09
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- UCPH
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 12mm |
|---|---|
| h | 70mm |
| a | 127mm |
| e | 95mm |
| b | 40mm |
| s1 | 13mm |
| s2 | 19mm |
| g | 15mm |
| w | 101mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M10 |
| Bearing no | UC201 |
| Housing no | PH201 |
| Weight | 0.84 kg |
