SKU: UCPG211-SNR

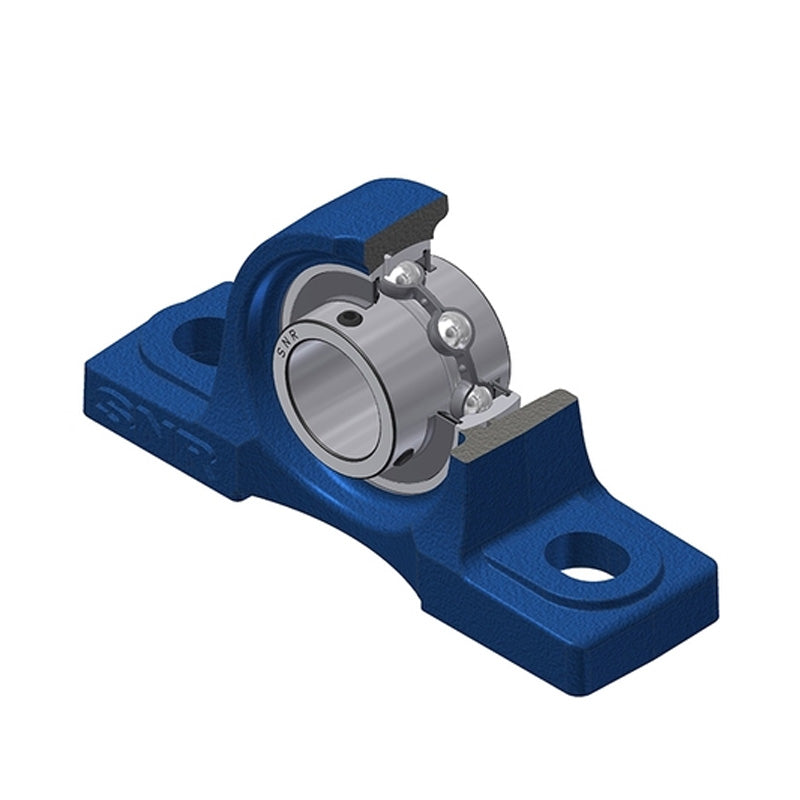

SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 6,787.56
Regular price
Sale price
Rs. 6,787.56
Taxes included.
In stock
Price Break
10+
Rs. 6,040.93
19+
Rs. 5,701.55
29+
Rs. 5,633.67
39+
Rs. 5,565.80
49+
Rs. 5,497.92
74+
Rs. 5,430.05
99+
Rs. 5,090.67
199+
Rs. 5,022.79
249+
Rs. 4,954.92
499+
Rs. 4,887.04
999+
Rs. 4,751.29
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPG
- Bolt Hole Centres:
- 100mm
Technical
Technical

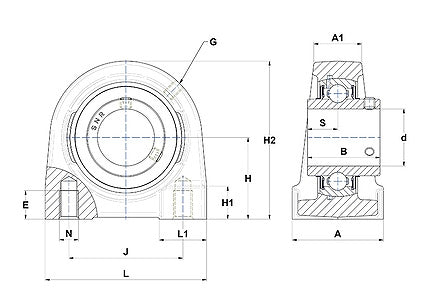

| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 34mm |
| B | 55.6mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 25mm |
| H2 | 126mm |
| J | 100mm |
| L | 140mm |
| L1 | 40mm |
| N | M16 |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.42 kg |
