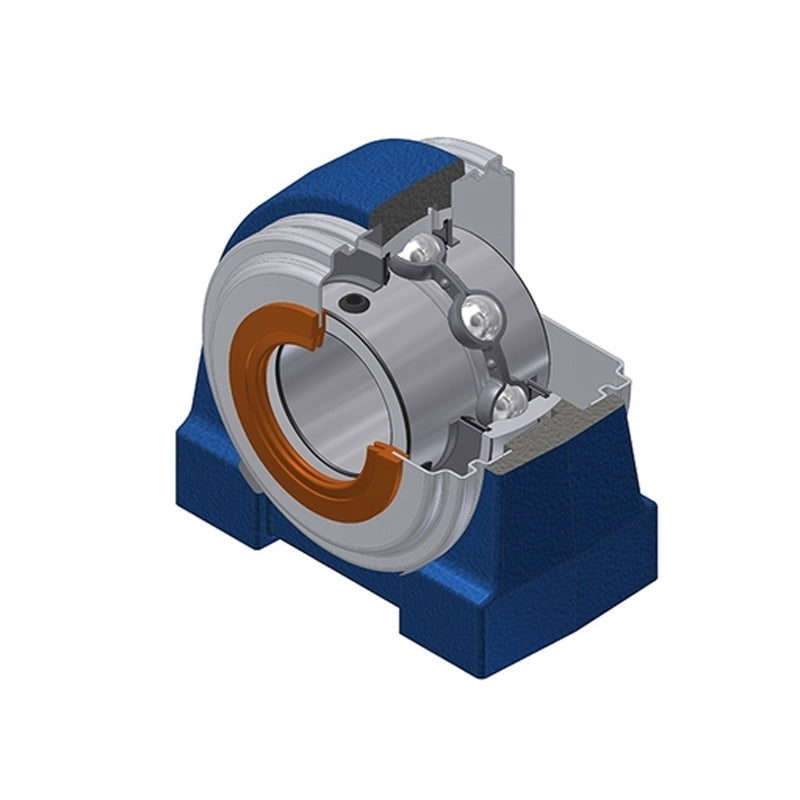

SNR UCPG209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCPG209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 14,181.92
Regular price
Sale price
Rs. 14,181.92
Taxes included.
In stock
Price Break
5+
Rs. 14,040.10
10+
Rs. 13,472.82
20+
Rs. 13,189.19
50+
Rs. 12,763.73
100+
Rs. 12,480.09
500+
Rs. 11,770.99
1000+
Rs. 9,927.34
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCPG
- Bolt Hole Centres:
- 85mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 54mm |
| A1 | 33mm |
| B | 49.2mm |
| E | 22mm |
| H | 53.9mm |
| H1 | 20mm |
| H2 | 106mm |
| J | 85mm |
| L | 120mm |
| L1 | 40mm |
| N | M12 |
| S | 19mm |
| Dz | 95mm |
| Z | 70.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.249 kg |
