SKU: UCPG203CO-SNR

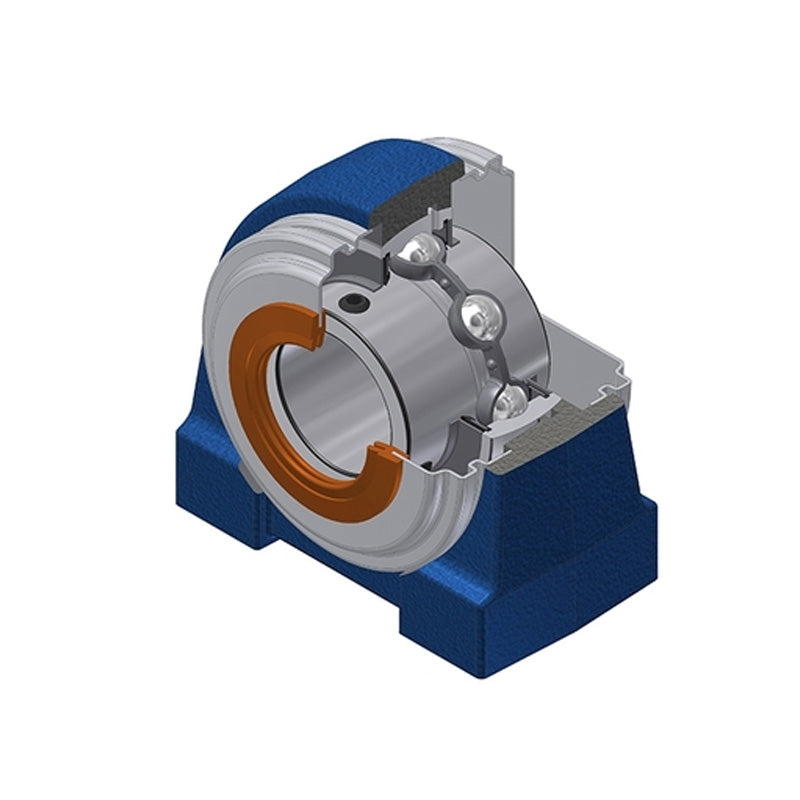

SNR UCPG203CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCPG203CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
Rs. 9,921.45
Regular price
Sale price
Rs. 9,921.45
Taxes included.
In stock
Price Break
5+
Rs. 9,822.24
10+
Rs. 9,425.38
20+
Rs. 9,226.95
50+
Rs. 8,929.31
100+
Rs. 8,730.88
500+
Rs. 8,234.80
1000+
Rs. 6,945.02
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCPG
- Bolt Hole Centres:
- 49mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| A | 38mm |
| A1 | 20mm |
| B | 31mm |
| E | 16mm |
| H | 33.3mm |
| H1 | 14mm |
| H2 | 64mm |
| J | 49mm |
| L | 70mm |
| L1 | 21mm |
| N | M8 |
| S | 12.7mm |
| Dz | 54mm |
| Z | 30.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.61 kg |
