SKU: UCPE212-SNR
SNR UCPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
SNR UCPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
Regular price
Rs. 7,917.96
Regular price
Sale price
Rs. 7,917.96
Taxes included.
In stock
Price Break
10+
Rs. 7,046.98
19+
Rs. 6,651.09
29+
Rs. 6,571.91
39+
Rs. 6,492.73
49+
Rs. 6,413.55
74+
Rs. 6,334.37
99+
Rs. 5,938.47
199+
Rs. 5,859.29
249+
Rs. 5,780.11
499+
Rs. 5,700.93
999+
Rs. 5,542.57
Description
Description

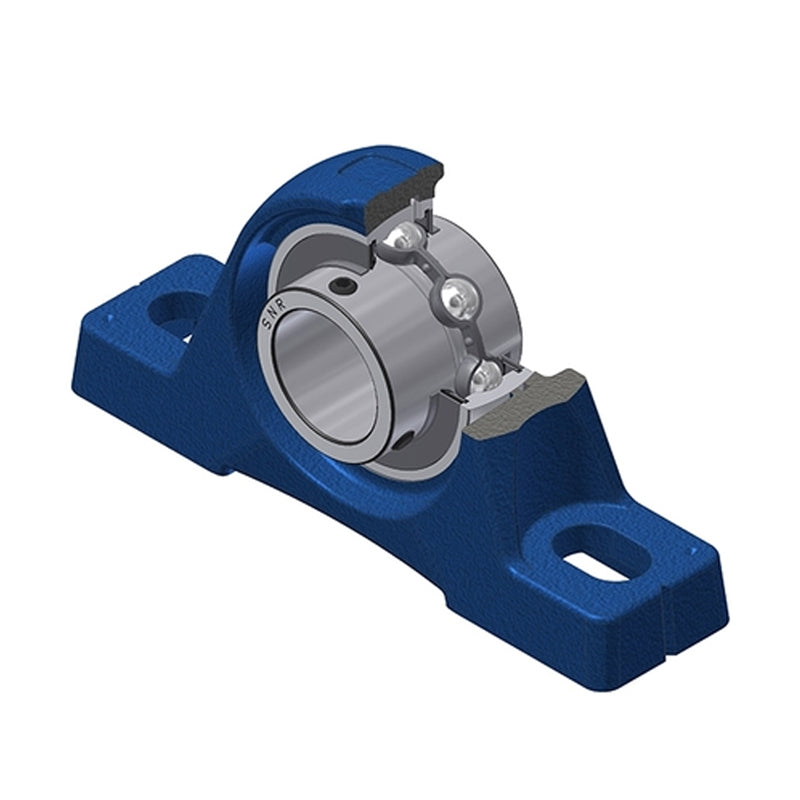

UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPE
- Bolt Hole Centres:
- 190mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 65.1mm |
| H | 69.9mm |
| H1 | 25mm |
| H2 | 140mm |
| J | 190mm |
| L | 240mm |
| L1 | 71mm |
| N | 18mm |
| N1 | 28mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.83 kg |
