SKU: UCPE206-SNR

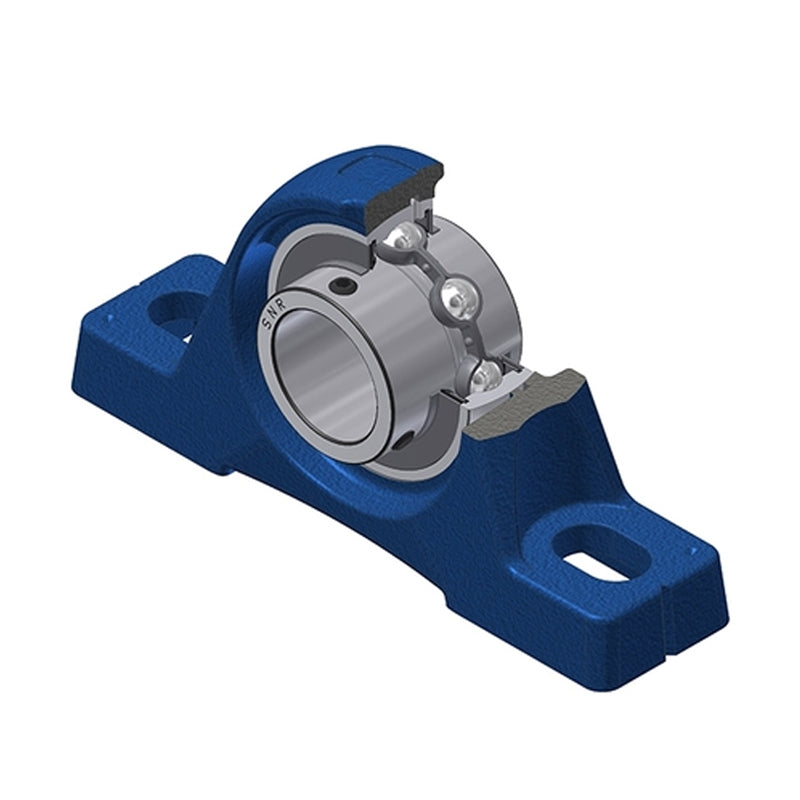

SNR UCPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert
SNR UCPE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert
Regular price
Rs. 3,290.08
Regular price
Sale price
Rs. 3,290.08
Taxes included.
In stock
Price Break
10+
Rs. 2,928.17
19+
Rs. 2,763.67
29+
Rs. 2,730.77
39+
Rs. 2,697.87
49+
Rs. 2,664.96
74+
Rs. 2,632.06
99+
Rs. 2,467.56
199+
Rs. 2,434.66
249+
Rs. 2,401.76
499+
Rs. 2,368.86
999+
Rs. 2,303.06
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCPE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 40mm |
| A1 | 25mm |
| B | 38.1mm |
| H | 42.9mm |
| H1 | 17mm |
| H2 | 82mm |
| J | 118mm |
| L | 158mm |
| L1 | 47mm |
| N | 14mm |
| N1 | 22mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.12 kg |
