SKU: UCPA211-SNR

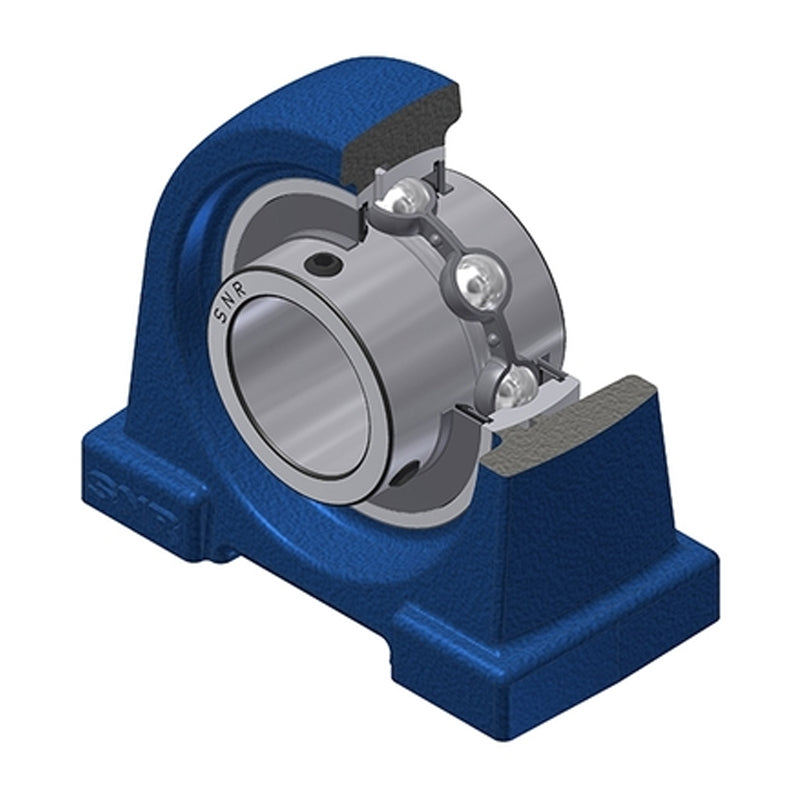

SNR UCPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert - Allow 2-3 Days
SNR UCPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 9,924.01
Regular price
Sale price
Rs. 9,924.01
Taxes included.
In stock
Price Break
5+
Rs. 9,824.77
10+
Rs. 9,427.81
20+
Rs. 9,229.33
50+
Rs. 8,931.61
100+
Rs. 8,733.13
500+
Rs. 8,236.93
1000+
Rs. 6,946.81
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPA
- Bolt Hole Centres:
- 104mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 66mm |
| A1 | 33mm |
| B | 55.6mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 14mm |
| H2 | 125mm |
| J | 104mm |
| L | 140mm |
| L1 | 47mm |
| N | M16 |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.22 kg |
