SKU: UCPA.210-30

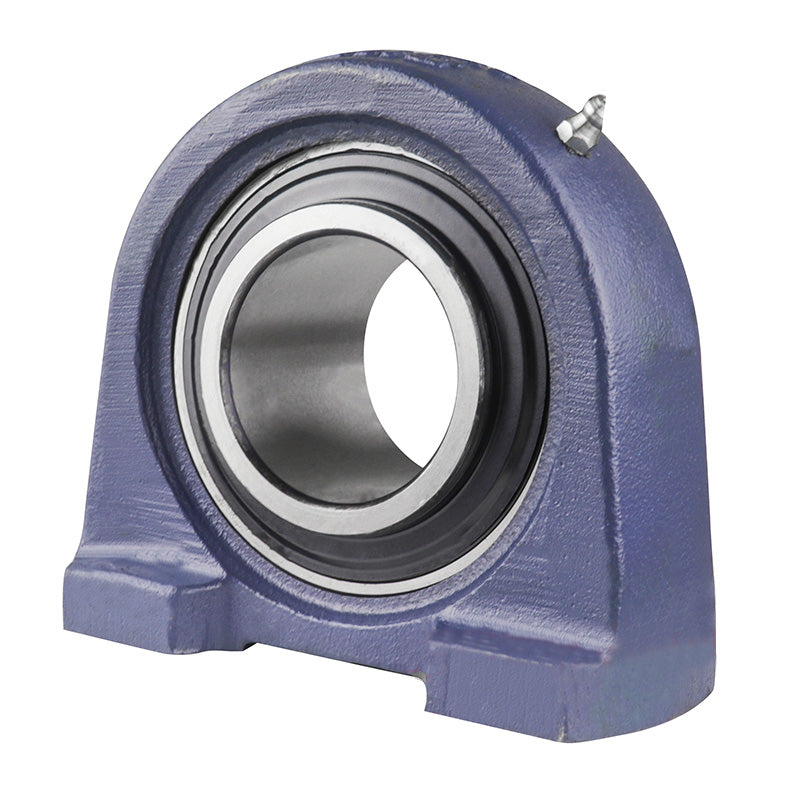

UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
Regular price
Rs. 4,394.88
Regular price
Sale price
Rs. 4,394.88
Taxes included.
In stock
Price Break
10+
Rs. 3,911.44
19+
Rs. 3,691.70
29+
Rs. 3,647.75
39+
Rs. 3,603.80
49+
Rs. 3,559.85
74+
Rs. 3,515.90
99+
Rs. 3,296.16
199+
Rs. 3,252.21
249+
Rs. 3,208.26
499+
Rs. 3,164.31
999+
Rs. 3,076.42
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 94.06mm = 3.703 (3-45/64) inch
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| h | 2-1/4" |
| a | 5-1/8" |
| e | 3-45/64" |
| b | 2-17/32" |
| s | M16 |
| g | 9/16" |
| w | 4-9/16" |
| D | 1" |
| Bi | 2.0315" |
| n | 0.7480" |
| Bolt Size | M16 |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
