SKU: UCPA.208-25

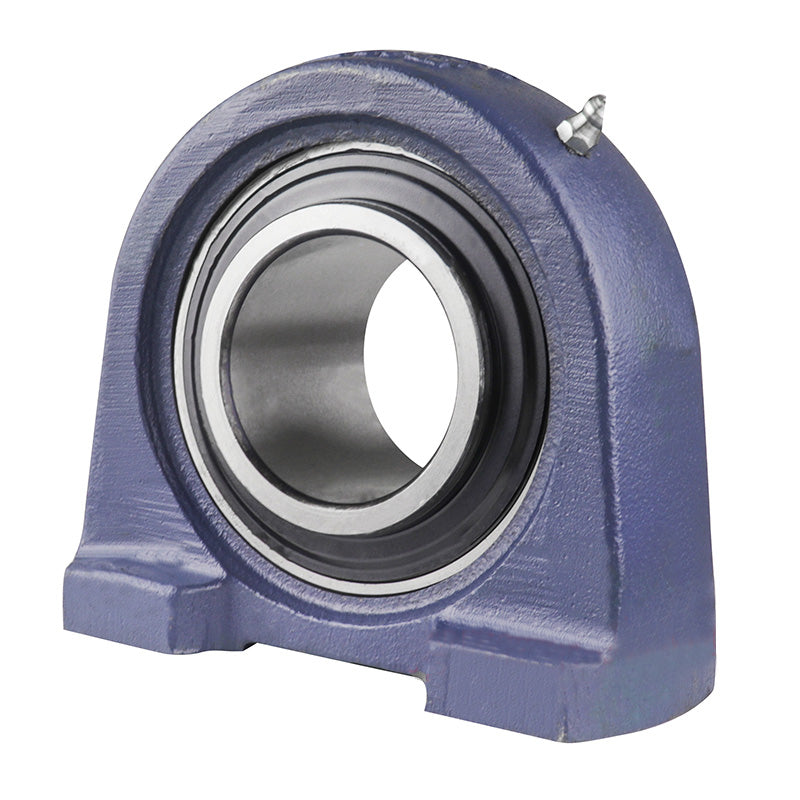

UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
Regular price
Rs. 3,379.70
Regular price
Sale price
Rs. 3,379.70
Taxes included.
In stock
Price Break
10+
Rs. 3,007.93
19+
Rs. 2,838.95
29+
Rs. 2,805.15
39+
Rs. 2,771.35
49+
Rs. 2,737.56
74+
Rs. 2,703.76
99+
Rs. 2,534.78
199+
Rs. 2,500.98
249+
Rs. 2,467.18
499+
Rs. 2,433.38
999+
Rs. 2,365.79
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 84.13mm = 3.312 (3-5/16) inch
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| h | 1-15/16" |
| a | 4-9/16" |
| e | 3-5/16" |
| b | 2-9/32" |
| s | M14 |
| g | 1/2" |
| w | 3-15/16" |
| D | 25/32" |
| Bi | 1.9370" |
| n | 0.7480" |
| Bolt Size | M14 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
