SKU: UCPA.208-24

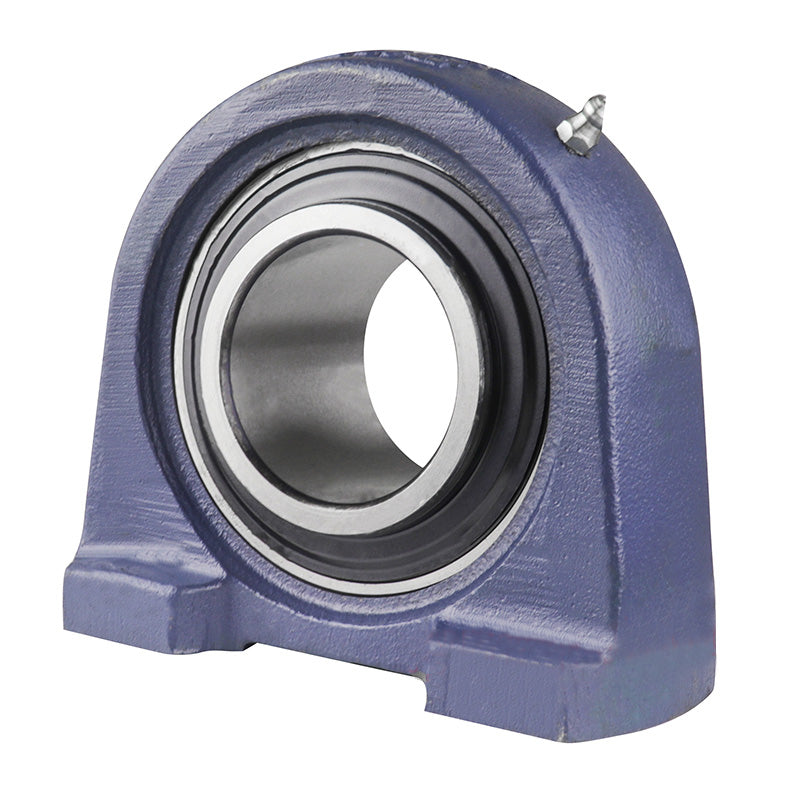

UCPA208-24 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/2 inch Bore Insert
UCPA208-24 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/2 inch Bore Insert
Regular price
Rs. 2,955.75
ex VAT
Regular price
Sale price
Rs. 2,955.75
ex VAT
In stock
Price Break
10+
Rs. 2,630.62
19+
Rs. 2,482.83
29+
Rs. 2,453.27
39+
Rs. 2,423.72
49+
Rs. 2,394.16
74+
Rs. 2,364.60
99+
Rs. 2,216.81
199+
Rs. 2,187.26
249+
Rs. 2,157.70
499+
Rs. 2,128.14
999+
Rs. 2,069.03
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 84.13mm = 3.312 (3-5/16) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| h | 1-15/16" |
| a | 4-9/16" |
| e | 3-5/16" |
| b | 2-9/32" |
| s | M14 |
| g | 1/2" |
| w | 3-15/16" |
| D | 25/32" |
| Bi | 1.9370" |
| n | 0.7480" |
| Bolt Size | M14 |
| Weight | 2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
