SKU: UCPA.207-20

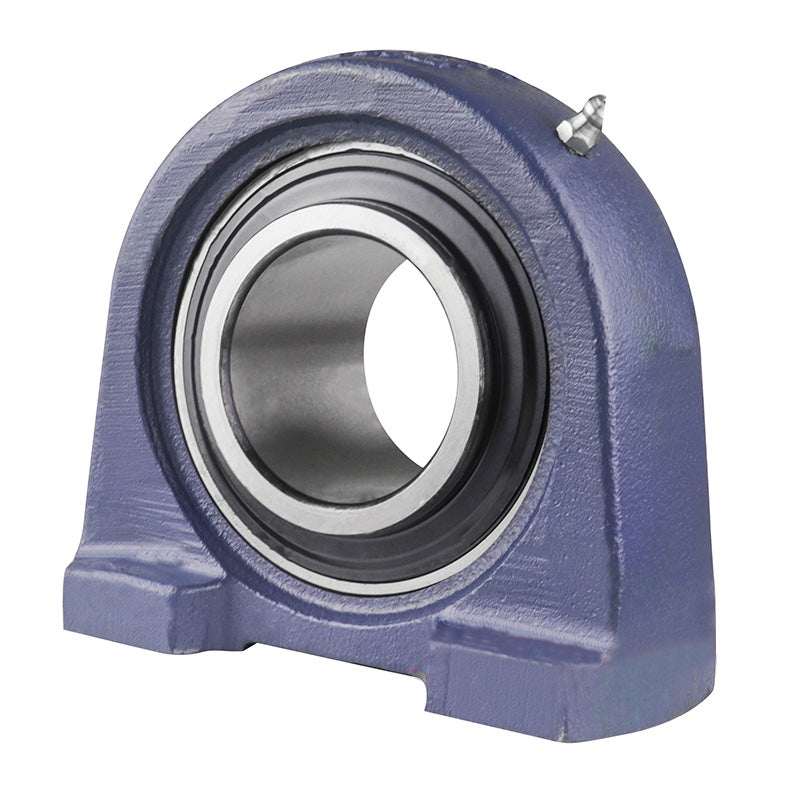

UCPA207-20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert
UCPA207-20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert
Regular price
Rs. 3,027.64
Regular price
Sale price
Rs. 3,027.64
Taxes included.
In stock
Price Break
10+
Rs. 2,694.60
19+
Rs. 2,543.22
29+
Rs. 2,512.94
39+
Rs. 2,482.66
49+
Rs. 2,452.39
74+
Rs. 2,422.11
99+
Rs. 2,270.73
199+
Rs. 2,240.45
249+
Rs. 2,210.18
499+
Rs. 2,179.90
999+
Rs. 2,119.35
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 80.17mm = 3.156 (3-5/32) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| h | 1-7/8" |
| a | 4-11/32" |
| e | 3-5/32" |
| b | 2-5/32" |
| s | M14 |
| g | 1/2" |
| w | 3-3/4" |
| D | 25/32" |
| Bi | 1.6890" |
| n | 0.6890" |
| Bolt Size | M14 |
| Weight | 1.7 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
