SKU: UCPA.205-16

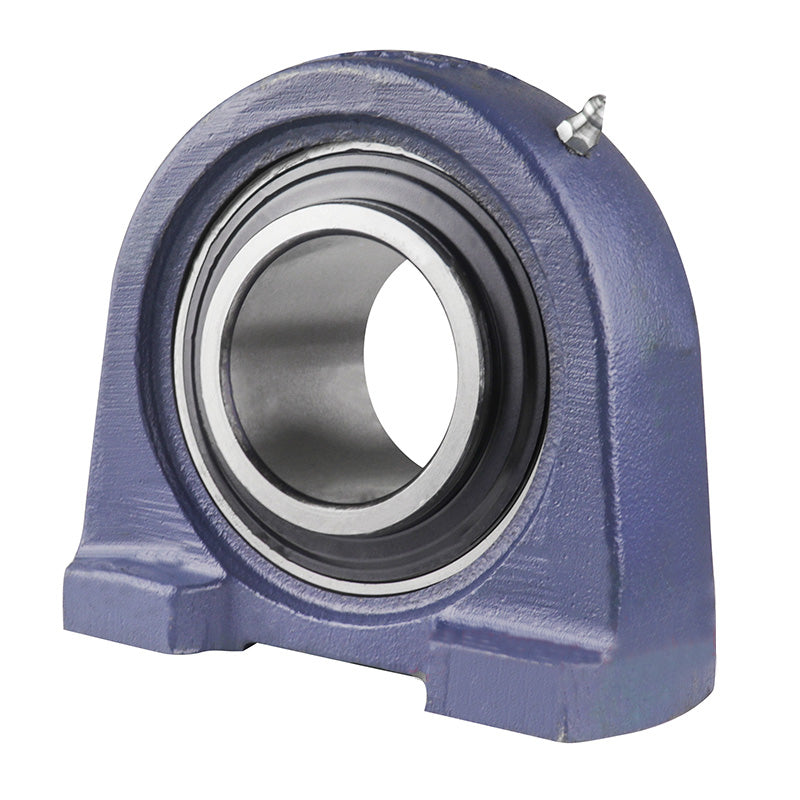

UCPA205-16 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1 inch Bore Insert
UCPA205-16 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1 inch Bore Insert
Regular price
Rs. 1,075.36
Regular price
Sale price
Rs. 1,075.36
Taxes included.
Equivalent to: SNP1
In stock
Price Break
10+
Rs. 957.07
19+
Rs. 903.30
29+
Rs. 892.55
39+
Rs. 881.80
49+
Rs. 871.04
74+
Rs. 860.29
99+
Rs. 806.52
199+
Rs. 795.77
249+
Rs. 785.01
499+
Rs. 774.26
999+
Rs. 752.75
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCPA
- Bolt Hole Centres:
- 55.96mm = 2.203 (2-13/64) inch
Technical
Technical
| d | 1 inch |
|---|---|
| h | 1-7/16" |
| a | 3-5/16" |
| e | 2-13/64" |
| b | 1-25/32" |
| s | M10 |
| g | 15/32" |
| w | 2-27/32" |
| D | 1/2" |
| Bi | 1.3386" |
| n | 0.5630" |
| Bolt Size | M10 |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
