SKU: UCP320D1-NTN

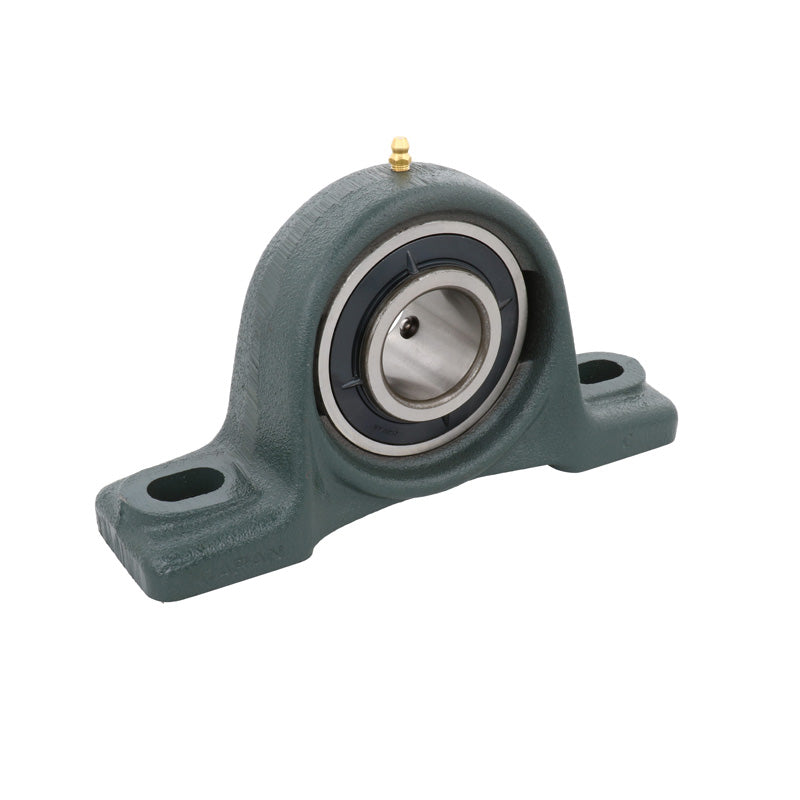

NTN UCP320D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
NTN UCP320D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 50,020.77
Regular price
Sale price
Rs. 50,020.77
Taxes included.
In stock
Price Break
10+
Rs. 44,518.49
19+
Rs. 42,017.45
29+
Rs. 41,517.24
39+
Rs. 41,017.03
49+
Rs. 40,516.82
74+
Rs. 40,016.62
99+
Rs. 37,515.58
199+
Rs. 37,015.37
249+
Rs. 36,515.16
499+
Rs. 36,014.95
999+
Rs. 35,014.54
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCP
- Bolt Hole Centres:
- 380mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 100mm |
| H | 140mm |
| L | 490mm |
| J | 380mm |
| A | 120mm |
| N | 36mm |
| N<sub>1</sub> | 50mm |
| H<sub>1</sub> | 50mm |
| H<sub>2</sub> | 275mm |
| L<sub>1</sub> | 130mm |
| B | 108mm |
| S | 42mm |
| Fixing bolt | M30 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 192 kN |
| Static load C<sub>0r</sub> | 141 kN |
| Fatigue load limit C<sub>u</sub> | 8.75 kN |
| --- | Unit information |
| Mass | 33 kg |
