SKU: UCP319D1-NTN

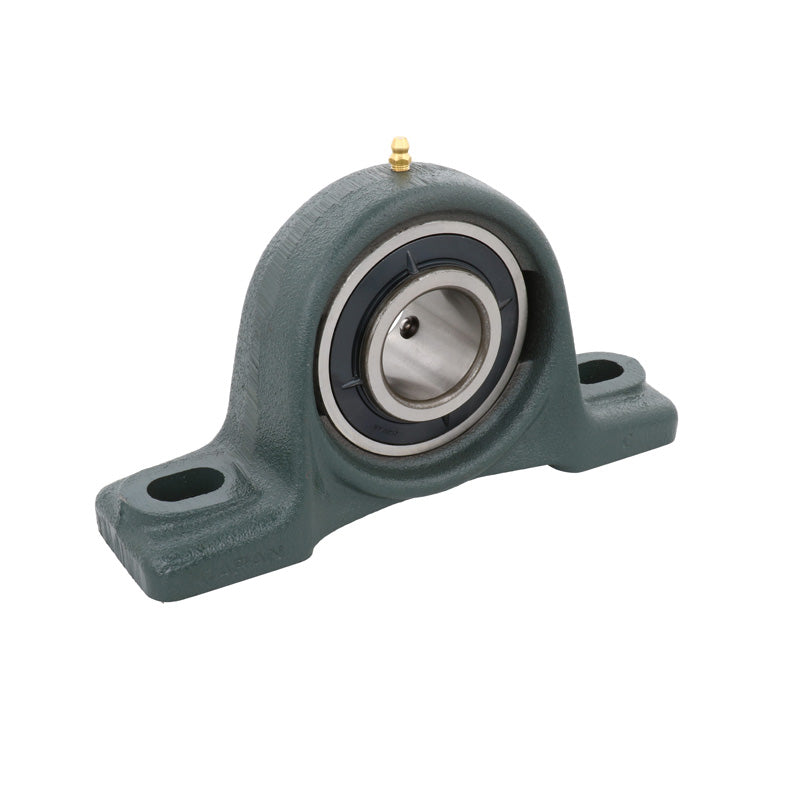

NTN UCP319D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 95mm Bore Insert - Allow 2-3 Days
NTN UCP319D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 95mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 63,846.80
Regular price
Sale price
Rs. 63,846.80
Taxes included.
In stock
Price Break
5+
Rs. 63,208.33
10+
Rs. 60,654.46
20+
Rs. 59,377.52
50+
Rs. 57,462.12
100+
Rs. 56,185.18
500+
Rs. 52,992.84
1000+
Rs. 44,692.76
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Style:
- UCP
- Bolt Hole Centres:
- 360mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 95mm |
| H | 125mm |
| L | 470mm |
| J | 360mm |
| A | 120mm |
| N | 36mm |
| N<sub>1</sub> | 50mm |
| H<sub>1</sub> | 45mm |
| H<sub>2</sub> | 250mm |
| L<sub>1</sub> | 125mm |
| B | 103mm |
| S | 41mm |
| Fixing bolt | M30 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 169 kN |
| Static load C<sub>0r</sub> | 119 kN |
| Fatigue load limit C<sub>u</sub> | 7.65 kN |
| --- | Unit information |
| Mass | 26 kg |
