SKU: UCP317D1-NTN

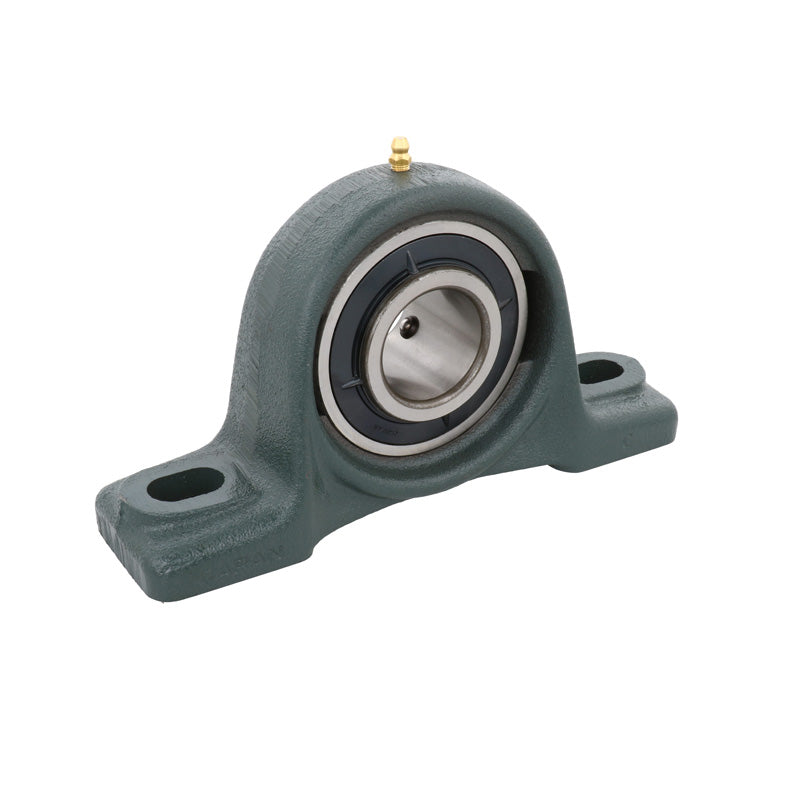

NTN UCP317D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
NTN UCP317D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 33,173.50
Regular price
Sale price
Rs. 33,173.50
Taxes included.
In stock
Price Break
10+
Rs. 29,524.42
19+
Rs. 27,865.74
29+
Rs. 27,534.01
39+
Rs. 27,202.27
49+
Rs. 26,870.54
74+
Rs. 26,538.80
99+
Rs. 24,880.13
199+
Rs. 24,548.39
249+
Rs. 24,216.66
499+
Rs. 23,884.92
999+
Rs. 23,221.45
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCP
- Bolt Hole Centres:
- 320mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| H | 112mm |
| L | 420mm |
| J | 320mm |
| A | 110mm |
| N | 33mm |
| N<sub>1</sub> | 45mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 220mm |
| L<sub>1</sub> | 120mm |
| B | 96mm |
| S | 40mm |
| Fixing bolt | M27 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 97 kN |
| Fatigue load limit C<sub>u</sub> | 6.55 kN |
| --- | Unit information |
| Mass | 19 kg |
