SKU: UCP316D1-NTN

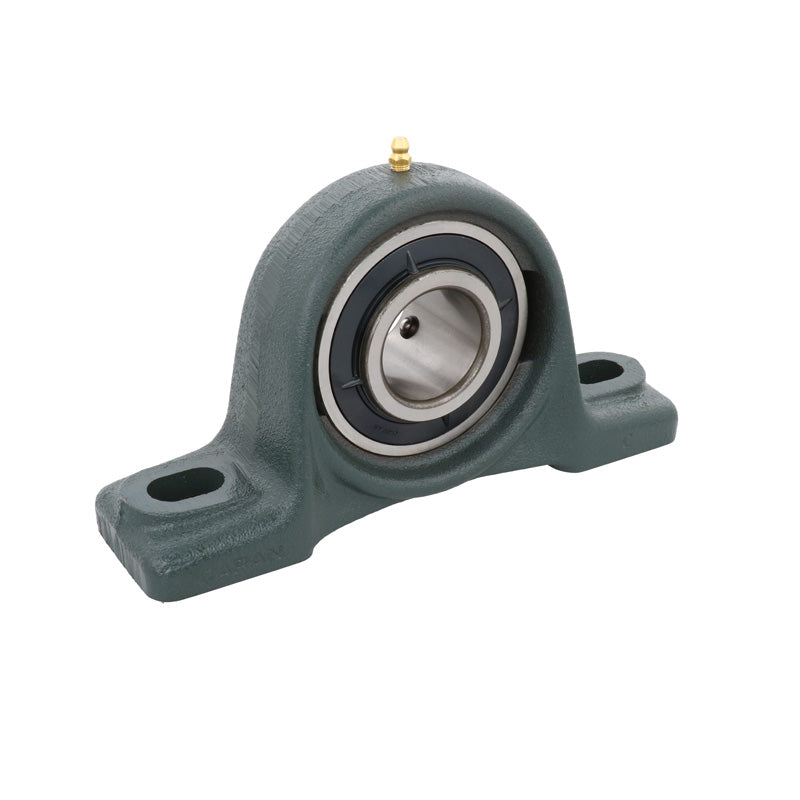

NTN UCP316D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
NTN UCP316D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 29,897.50
Regular price
Sale price
Rs. 29,897.50
Taxes included.
In stock
Price Break
10+
Rs. 26,608.78
19+
Rs. 25,113.90
29+
Rs. 24,814.93
39+
Rs. 24,515.95
49+
Rs. 24,216.98
74+
Rs. 23,918.00
99+
Rs. 22,423.13
199+
Rs. 22,124.15
249+
Rs. 21,825.18
499+
Rs. 21,526.20
999+
Rs. 20,928.25
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCP
- Bolt Hole Centres:
- 300mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| H | 106mm |
| L | 400mm |
| J | 300mm |
| A | 110mm |
| N | 27mm |
| N<sub>1</sub> | 40mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 210mm |
| L<sub>1</sub> | 110mm |
| B | 86mm |
| S | 34mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 136 kN |
| Static load C<sub>0r</sub> | 86.5 kN |
| Fatigue load limit C<sub>u</sub> | 6.05 kN |
| --- | Unit information |
| Mass | 17 kg |
