SKU: UCP315D1-NTN

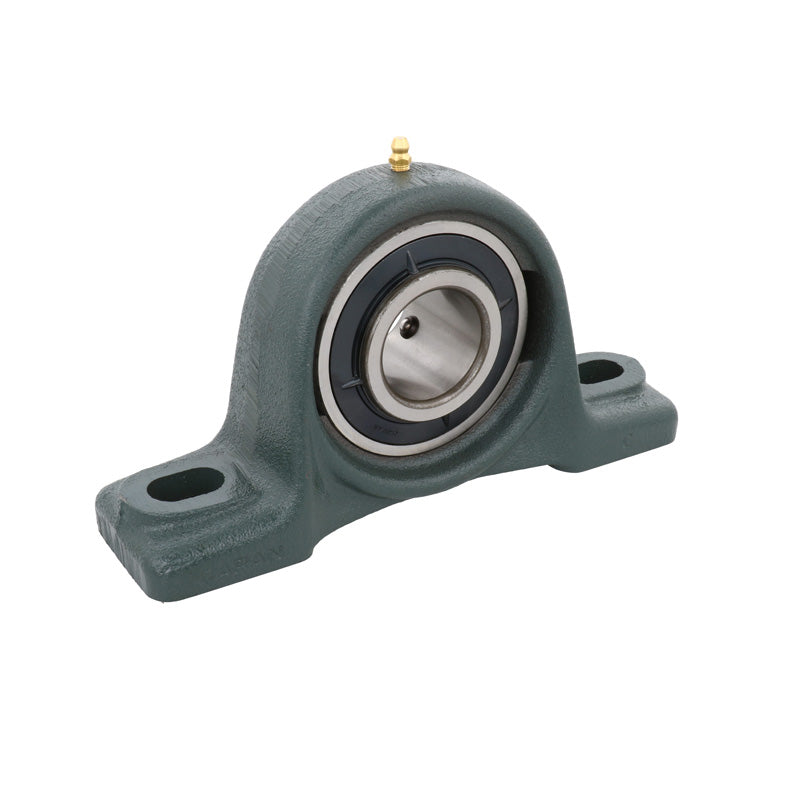

NTN UCP315D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
NTN UCP315D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 36,844.04
ex VAT
Regular price
Sale price
Rs. 36,844.04
ex VAT
In stock
Price Break
5+
Rs. 36,475.60
10+
Rs. 35,001.84
20+
Rs. 34,264.96
50+
Rs. 33,159.64
100+
Rs. 32,422.76
500+
Rs. 30,580.55
1000+
Rs. 25,790.83
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCP
- Bolt Hole Centres:
- 290mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| H | 100mm |
| L | 380mm |
| J | 290mm |
| A | 100mm |
| N | 27mm |
| N<sub>1</sub> | 40mm |
| H<sub>1</sub> | 35mm |
| H<sub>2</sub> | 198mm |
| L<sub>1</sub> | 110mm |
| B | 82mm |
| S | 32mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 126 kN |
| Static load C<sub>0r</sub> | 77 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 14 kg |
