SNR UCP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
SNR UCP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 12,750.67
Regular price
Sale price
Rs. 12,750.67
Taxes included.
In stock
Price Break
10+
Rs. 11,348.10
19+
Rs. 10,710.56
29+
Rs. 10,583.06
39+
Rs. 10,455.55
49+
Rs. 10,328.04
74+
Rs. 10,200.54
99+
Rs. 9,563.00
199+
Rs. 9,435.50
249+
Rs. 9,307.99
499+
Rs. 9,180.48
999+
Rs. 8,925.47
Description
Description

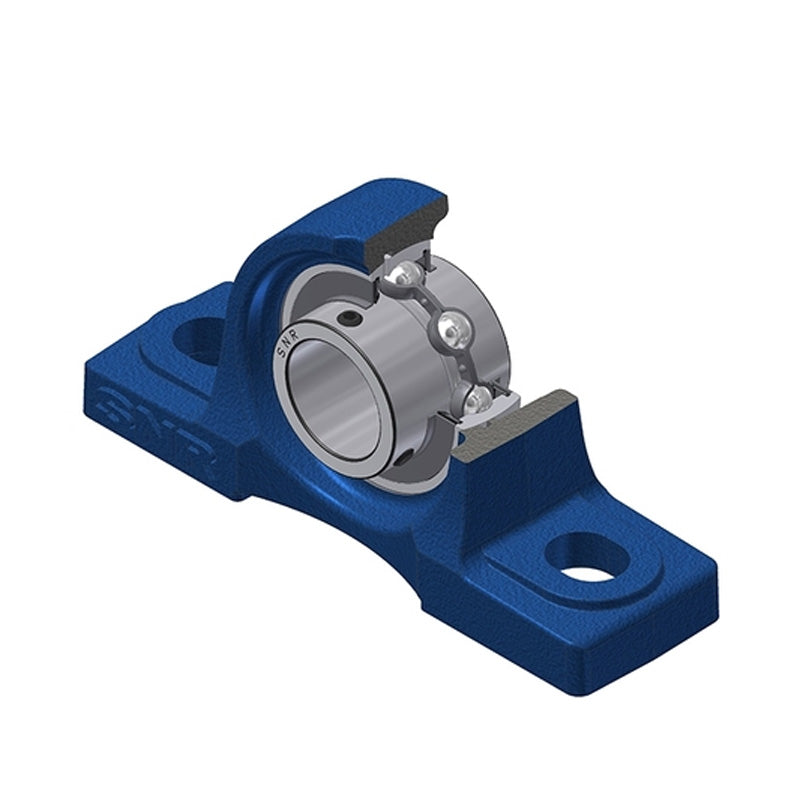

UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 80mm |
| A1 | 51mm |
| B | 66mm |
| H | 80mm |
| H1 | 30mm |
| H2 | 154mm |
| J | 236mm |
| L | 310mm |
| L1 | 85mm |
| N | 20mm |
| N1 | 38mm |
| S | 25mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.5 kg |
| Recommended tightening torque for set screw | 33 Nm |
