SKU: UCP310D1-NTN

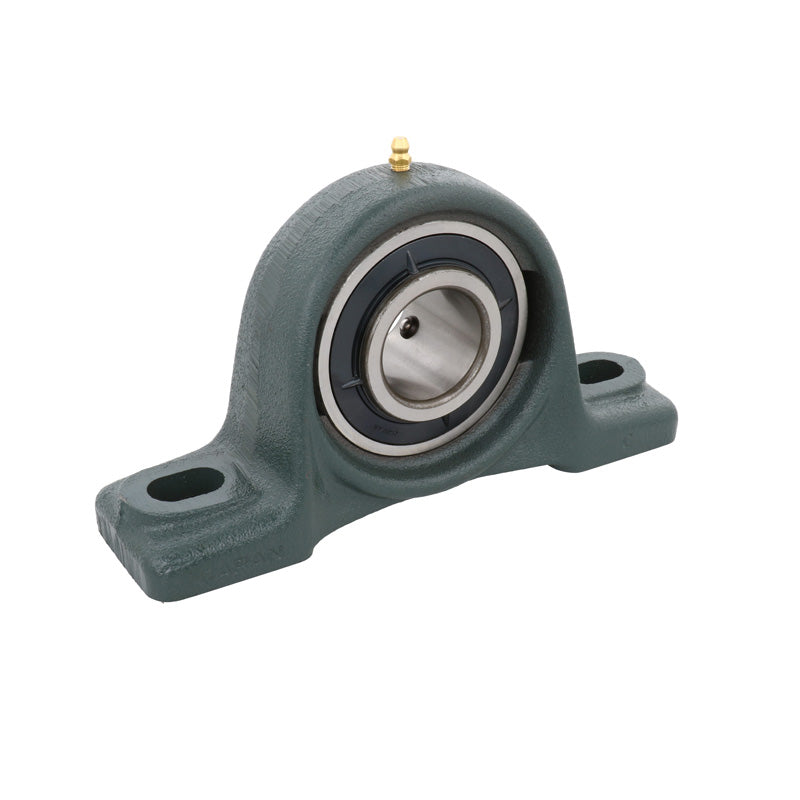

NTN UCP310D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
NTN UCP310D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 10,803.50
Regular price
Sale price
Rs. 10,803.50
Taxes included.
In stock
Price Break
10+
Rs. 9,615.12
19+
Rs. 9,074.94
29+
Rs. 8,966.91
39+
Rs. 8,858.87
49+
Rs. 8,750.84
74+
Rs. 8,642.80
99+
Rs. 8,102.63
199+
Rs. 7,994.59
249+
Rs. 7,886.56
499+
Rs. 7,778.52
999+
Rs. 7,562.45
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 75mm |
| L | 275mm |
| J | 212mm |
| A | 75mm |
| N | 20mm |
| N<sub>1</sub> | 35mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 143mm |
| L<sub>1</sub> | 75mm |
| B | 61mm |
| S | 22mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 68.5 kN |
| Static load C<sub>0r</sub> | 38.5 kN |
| Fatigue load limit C<sub>u</sub> | 2.99 kN |
| --- | Unit information |
| Mass | 5.6 kg |
