SKU: UCP308D1-NTN

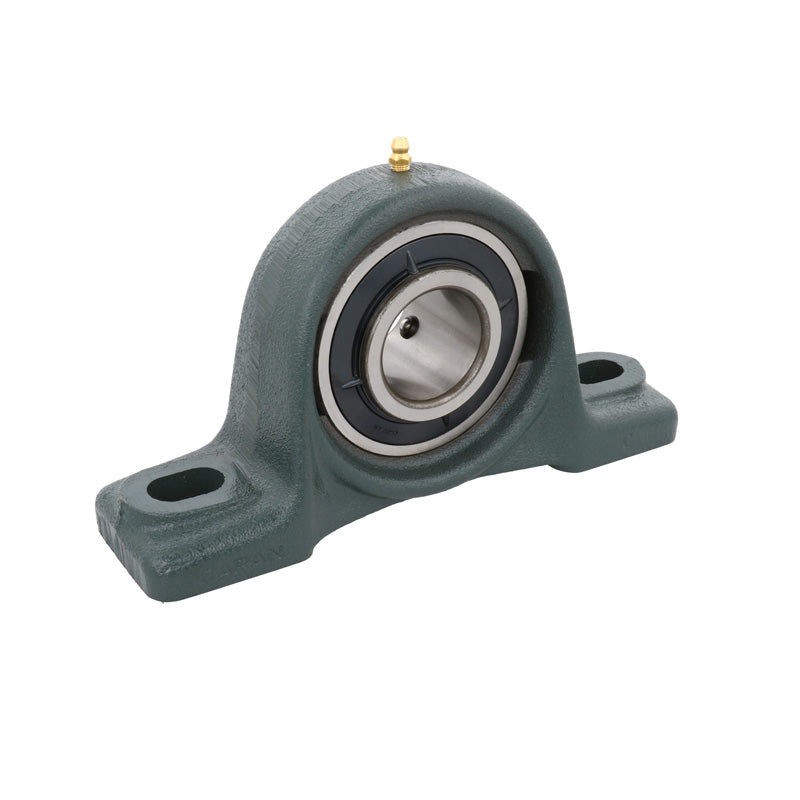

NTN UCP308D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
NTN UCP308D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 8,156.08
Regular price
Sale price
Rs. 8,156.08
Taxes included.
In stock
Price Break
10+
Rs. 7,258.91
19+
Rs. 6,851.11
29+
Rs. 6,769.55
39+
Rs. 6,687.99
49+
Rs. 6,606.42
74+
Rs. 6,524.86
99+
Rs. 6,117.06
199+
Rs. 6,035.50
249+
Rs. 5,953.94
499+
Rs. 5,872.38
999+
Rs. 5,709.26
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCP
- Bolt Hole Centres:
- 170mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 60mm |
| L | 220mm |
| J | 170mm |
| A | 60mm |
| N | 17mm |
| N<sub>1</sub> | 27mm |
| H<sub>1</sub> | 22mm |
| H<sub>2</sub> | 116mm |
| L<sub>1</sub> | 60mm |
| B | 52mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 45 kN |
| Static load C<sub>0r</sub> | 24 kN |
| Fatigue load limit C<sub>u</sub> | 1.83 kN |
| --- | Unit information |
| Mass | 3 kg |
