SKU: UCP217D1-NTN

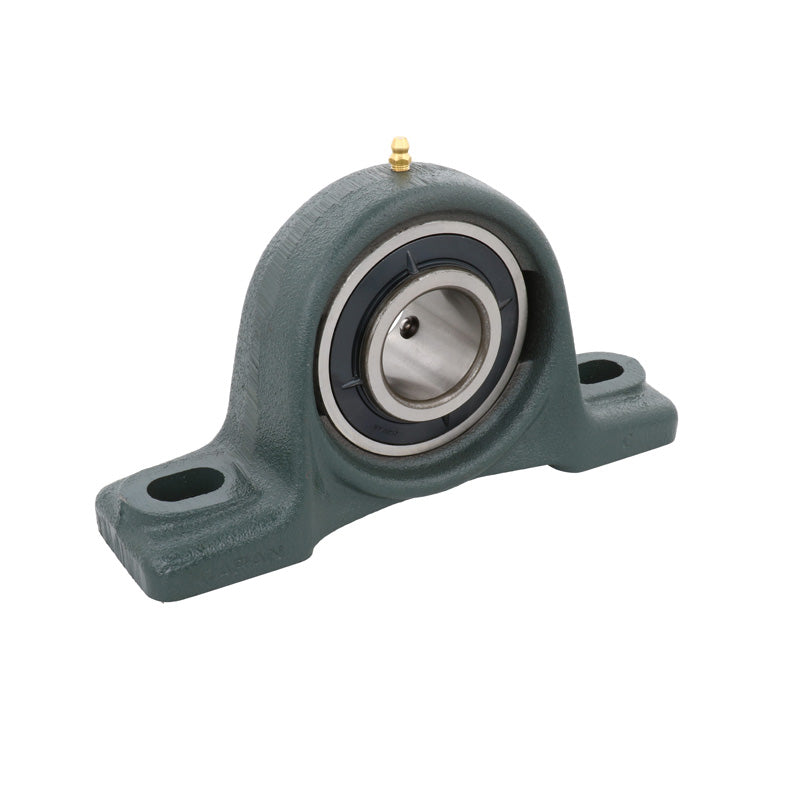

NTN UCP217D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
NTN UCP217D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 19,656.27
ex VAT
Regular price
Sale price
Rs. 19,656.27
ex VAT
In stock
Price Break
10+
Rs. 17,494.08
19+
Rs. 16,511.27
29+
Rs. 16,314.70
39+
Rs. 16,118.14
49+
Rs. 15,921.58
74+
Rs. 15,725.02
99+
Rs. 14,742.20
199+
Rs. 14,545.64
249+
Rs. 14,349.08
499+
Rs. 14,152.51
999+
Rs. 13,759.39
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCP
- Bolt Hole Centres:
- 247mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| H | 95.2mm |
| L | 310mm |
| J | 247mm |
| A | 83mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 32mm |
| H<sub>2</sub> | 187mm |
| L<sub>1</sub> | 85mm |
| B | 85.7mm |
| S | 34.1mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 11 kg |
