SKU: UCP214D1-NTN

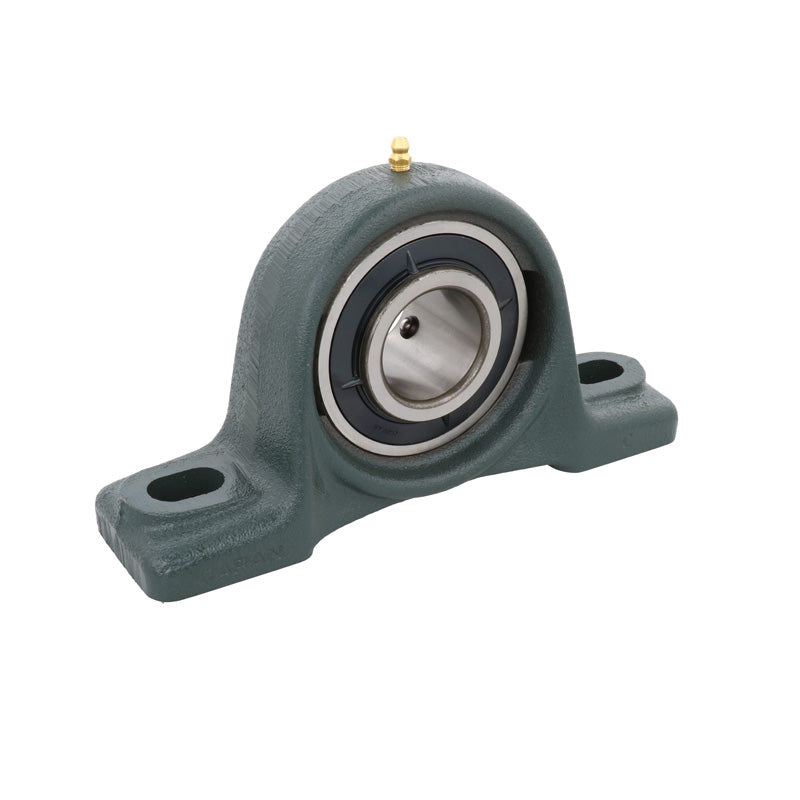

NTN UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCP214D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 11,650.99
Regular price
Sale price
Rs. 11,650.99
Taxes included.
In stock
Price Break
10+
Rs. 10,369.38
19+
Rs. 9,786.83
29+
Rs. 9,670.32
39+
Rs. 9,553.81
49+
Rs. 9,437.30
74+
Rs. 9,320.79
99+
Rs. 8,738.24
199+
Rs. 8,621.73
249+
Rs. 8,505.22
499+
Rs. 8,388.71
999+
Rs. 8,155.69
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| H | 79.4mm |
| L | 266mm |
| J | 210mm |
| A | 72mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 157mm |
| L<sub>1</sub> | 77mm |
| B | 74.6mm |
| S | 30.2mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 6.5 kg |
