SKU: UCP209CC-SNR

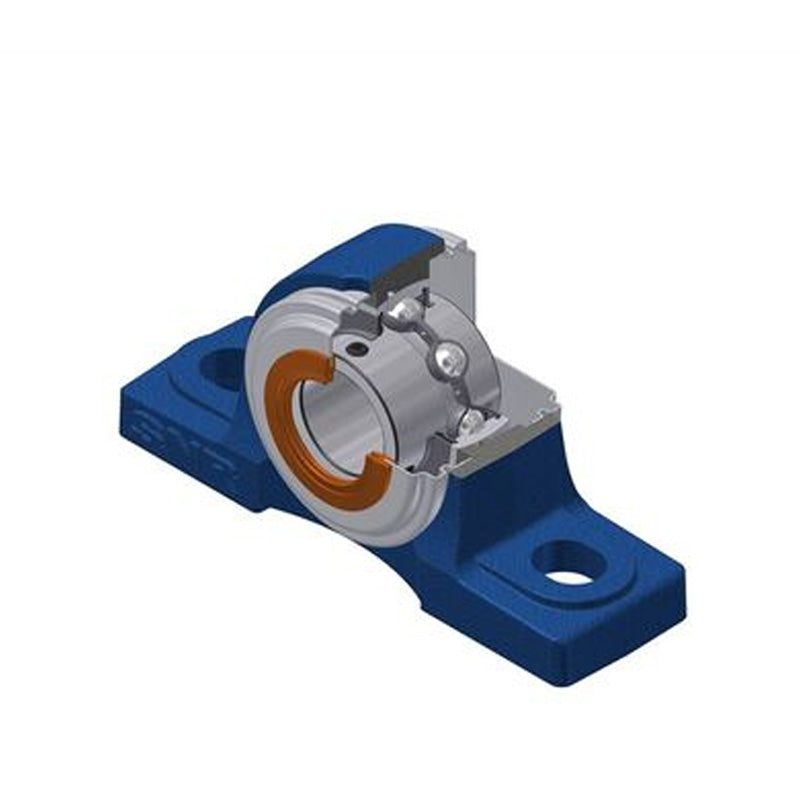

SNR UCP209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCP209CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 9,932.98
Regular price
Sale price
Rs. 9,932.98
Taxes included.
In stock
Price Break
5+
Rs. 9,833.65
10+
Rs. 9,436.33
20+
Rs. 9,237.67
50+
Rs. 8,939.68
100+
Rs. 8,741.02
500+
Rs. 8,244.37
1000+
Rs. 6,953.09
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical

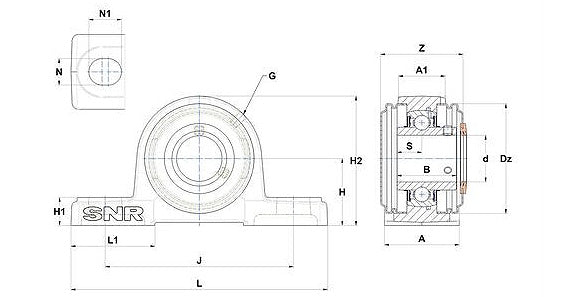

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 54mm |
| A1 | 37mm |
| B | 49.2mm |
| H | 54mm |
| H1 | 20mm |
| H2 | 108mm |
| J | 146mm |
| L | 190mm |
| L1 | 60mm |
| N | 17mm |
| N1 | 23mm |
| S | 19mm |
| Dz | 95mm |
| Z | 47.1mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.449 kg |
| Recommended tightening torque for set screw | 11.5 Nm |
