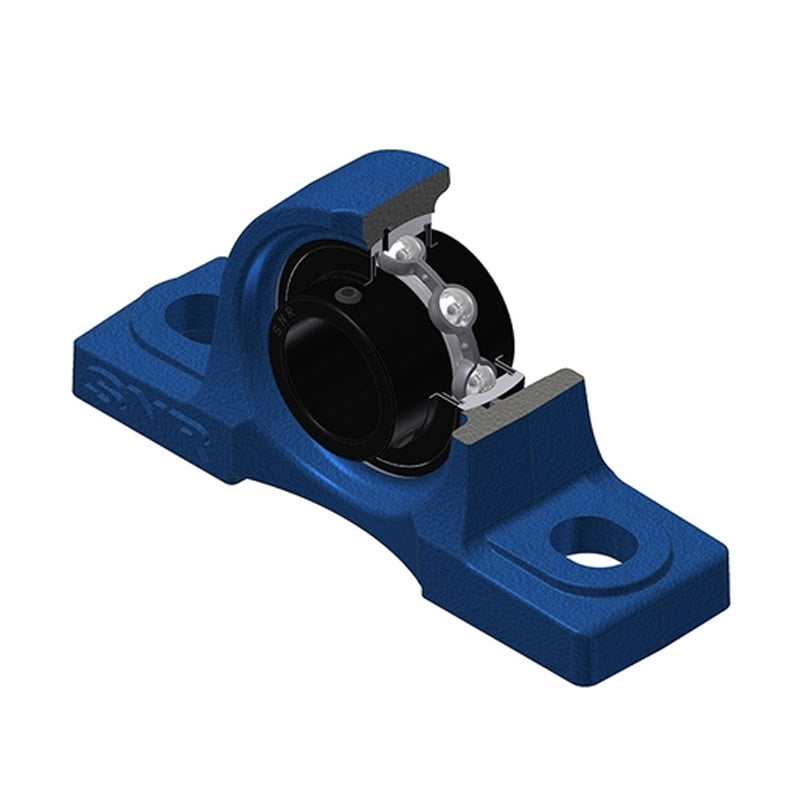

SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
Rs. 11,516.57
Regular price
Sale price
Rs. 11,516.57
Taxes included.
In stock
Price Break
10+
Rs. 10,249.75
19+
Rs. 9,673.92
29+
Rs. 9,558.75
39+
Rs. 9,443.59
49+
Rs. 9,328.42
74+
Rs. 9,213.26
99+
Rs. 8,637.43
199+
Rs. 8,522.26
249+
Rs. 8,407.10
499+
Rs. 8,291.93
999+
Rs. 8,061.60
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/2 inch |
| A | 54mm |
| A1 | 34mm |
| B | 49.2mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 100mm |
| J | 137mm |
| L | 184mm |
| L1 | 52mm |
| N | 17mm |
| N1 | 23mm |
| S | 19mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 2.18 kg |
| Recommended tightening torque for set screw | 8 Nm |
