SKU: UCP.320

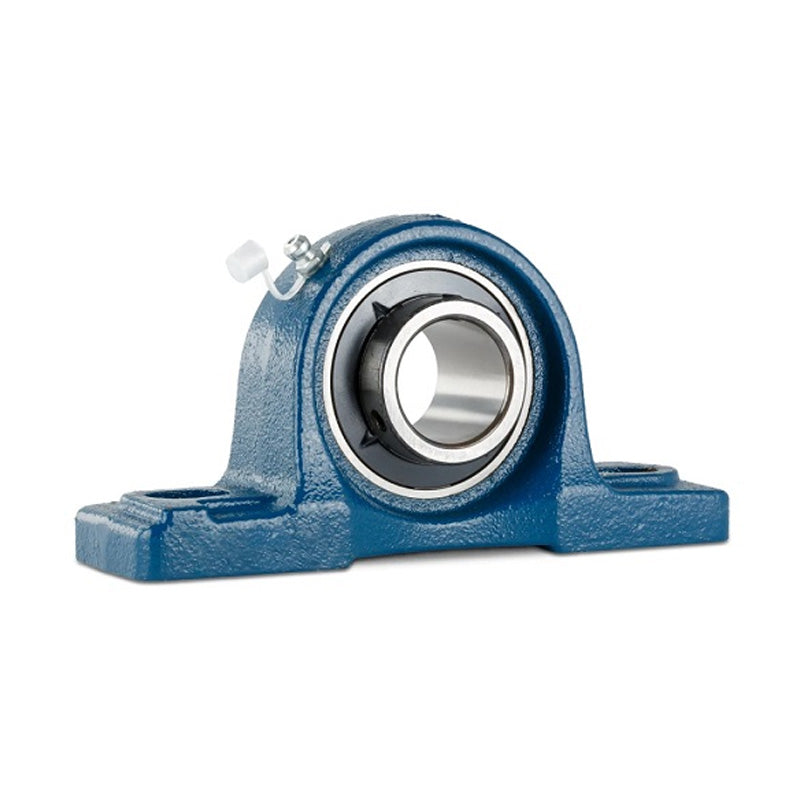

UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
UCP320 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 100mm Bore Insert
Regular price
Rs. 44,672.15
Regular price
Sale price
Rs. 44,672.15
Taxes included.
In stock
Price Break
10+
Rs. 39,758.21
19+
Rs. 37,524.61
29+
Rs. 37,077.88
39+
Rs. 36,631.16
49+
Rs. 36,184.44
74+
Rs. 35,737.72
99+
Rs. 33,504.11
199+
Rs. 33,057.39
249+
Rs. 32,610.67
499+
Rs. 32,163.95
999+
Rs. 31,270.51
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Style:
- UCP
- Bolt Hole Centres:
- 380mm
Technical
Technical
| d | 100mm |
|---|---|
| h | 140mm |
| a | 490mm |
| e | 380mm |
| b | 120mm |
| s2 | 50mm |
| s1 | 36mm |
| g | 50mm |
| w | 275mm |
| b1 | 108mm |
| n | 42mm |
| Bolt | 33mm |
| Weight | 34.8 kg |
| Dynamic load | 13580 kgf |
| Static load | 12860 kgf |
