SKU: UCP.306
UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
UCP306 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 30mm Bore Insert
Regular price
Rs. 3,516.68
Regular price
Sale price
Rs. 3,516.68
Taxes included.
In stock
Price Break
10+
Rs. 3,129.85
19+
Rs. 2,954.01
29+
Rs. 2,918.84
39+
Rs. 2,883.68
49+
Rs. 2,848.51
74+
Rs. 2,813.34
99+
Rs. 2,637.51
199+
Rs. 2,602.34
249+
Rs. 2,567.18
499+
Rs. 2,532.01
999+
Rs. 2,461.68
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCP
- Bolt Hole Centres:
- 140mm

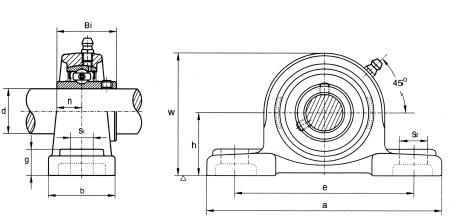

Technical
Technical
| d | 30mm |
|---|---|
| h | 50mm |
| a | 180mm |
| e | 140mm |
| b | 50mm |
| s2 | 20mm |
| s1 | 17mm |
| g | 18mm |
| w | 95mm |
| b1 | 43mm |
| n | 17mm |
| Bolt | 14mm |
| Weight | 2.1 kg |
| Dynamic load | 2119 kgf |
| Static load | 1445 kgf |
