SKU: UCP.218-56

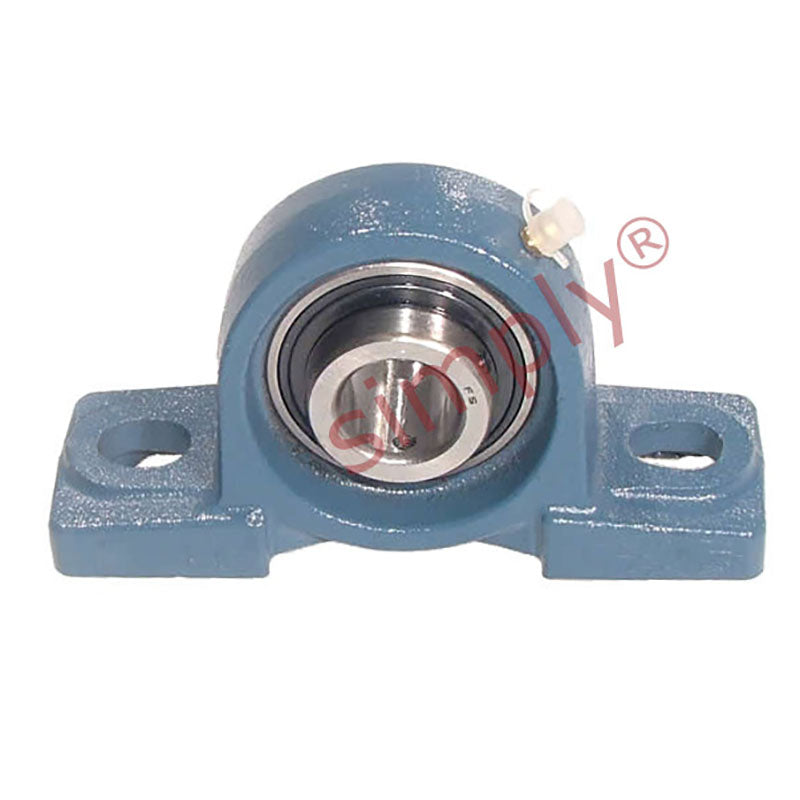

UCP218-56 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert
UCP218-56 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Insert
Regular price
Rs. 20,196.33
ex VAT
Regular price
Sale price
Rs. 20,196.33
ex VAT
In stock
Price Break
10+
Rs. 17,974.73
19+
Rs. 16,964.92
29+
Rs. 16,762.95
39+
Rs. 16,560.99
49+
Rs. 16,359.03
74+
Rs. 16,157.06
99+
Rs. 15,147.25
199+
Rs. 14,945.28
249+
Rs. 14,743.32
499+
Rs. 14,541.36
999+
Rs. 14,137.43
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| h | 101.6mm |
| a | 327mm |
| e | 262mm |
| b | 88mm |
| s2 | 33mm |
| s1 | 27mm |
| g | 34mm |
| w | 200mm |
| B1 | 96mm |
| n | 39.7mm |
| Bolt Size | M22 |
| Weight | 14.3 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
