SKU: UCP.215-48.TS.CHAL

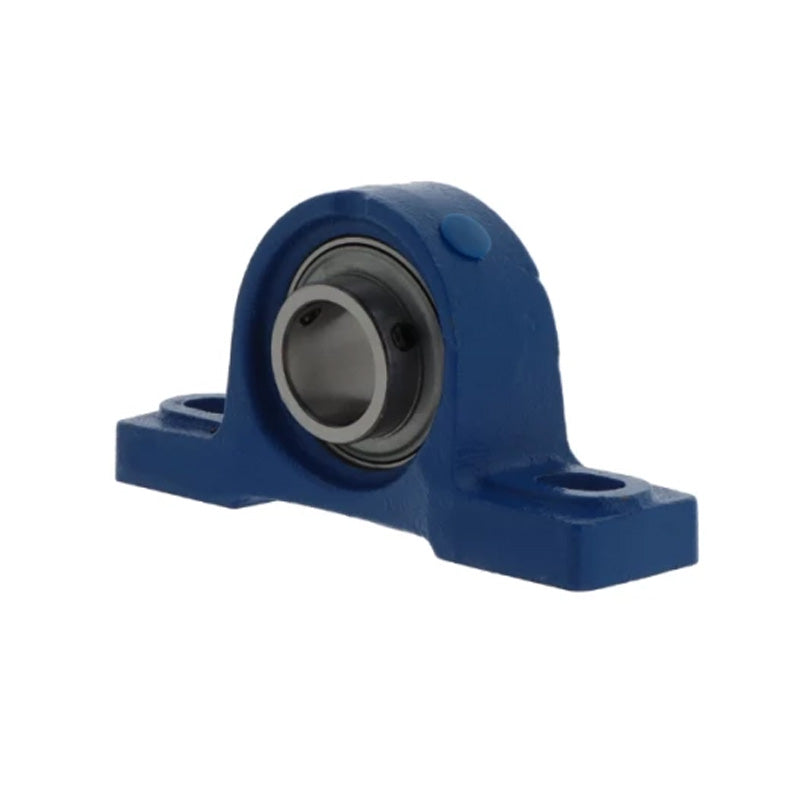

Challenge / FK UCP215-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP215-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 31,132.88
Regular price
Sale price
Rs. 31,132.88
Taxes included.
Equivalent to: UCP.215-48
In stock
Price Break
10+
Rs. 27,708.26
19+
Rs. 26,151.62
29+
Rs. 25,840.29
39+
Rs. 25,528.96
49+
Rs. 25,217.63
74+
Rs. 24,906.30
99+
Rs. 23,349.66
199+
Rs. 23,038.33
249+
Rs. 22,727.00
499+
Rs. 22,415.67
999+
Rs. 21,793.02
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.215-48
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Casting Centre Line Height h | 82.6mm |
| Casting Length a | 275mm |
| Recommended Bolt Centres l | 217mm |
| Casting Width b | 74mm |
| Slot Length s<sub>2</sub> | 28mm |
| Slot Width s<sub>1</sub> | 25mm |
| Foot Height g | 28mm |
| Overall Height w | 162mm |
| Bearing Insert Width Bi | 77.8mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Bolt Size | 3/4 inch |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC215-48 |
| Housing No | P215 |
