SKU: UCP.214-44

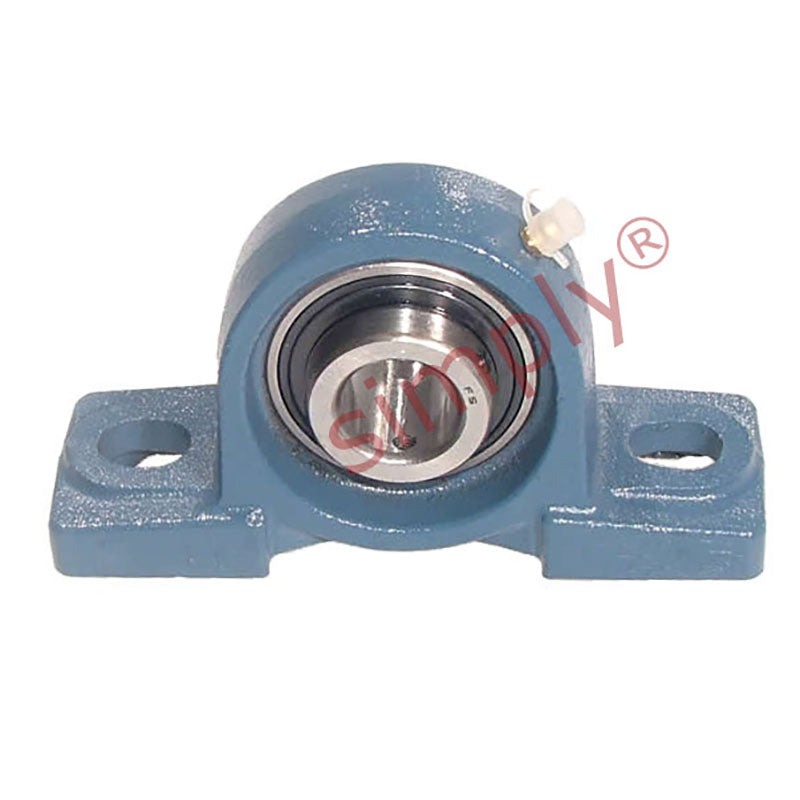

UCP214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert
UCP214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert
Regular price
Rs. 10,538.87
ex VAT
Regular price
Sale price
Rs. 10,538.87
ex VAT
In stock
Price Break
10+
Rs. 9,379.59
19+
Rs. 8,852.65
29+
Rs. 8,747.26
39+
Rs. 8,641.87
49+
Rs. 8,536.48
74+
Rs. 8,431.10
99+
Rs. 7,904.15
199+
Rs. 7,798.76
249+
Rs. 7,693.38
499+
Rs. 7,587.99
999+
Rs. 7,377.21
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 2-3/4 inch |
|---|---|
| h | 79.4mm |
| a | 266mm |
| e | 210mm |
| b | 72mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 27mm |
| w | 156mm |
| B1 | 74.6mm |
| n | 30.2mm |
| Bolt Size | M20 |
| Weight | 7 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
