SKU: UCP.212-39

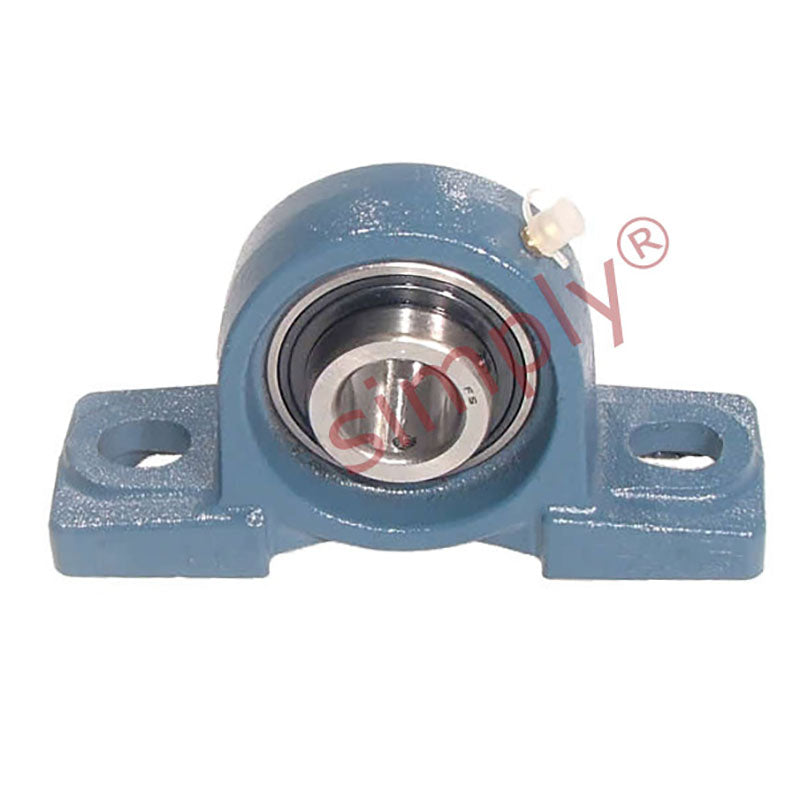

UCP212-39 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert
UCP212-39 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-7/16 inch Bore Insert
Regular price
Rs. 6,130.58
ex VAT
Regular price
Sale price
Rs. 6,130.58
ex VAT
In stock
Price Break
10+
Rs. 5,456.22
19+
Rs. 5,149.69
29+
Rs. 5,088.38
39+
Rs. 5,027.08
49+
Rs. 4,965.77
74+
Rs. 4,904.46
99+
Rs. 4,597.94
199+
Rs. 4,536.63
249+
Rs. 4,475.32
499+
Rs. 4,414.02
999+
Rs. 4,291.41
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| h | 69.8mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 25mm |
| w | 137mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 4.8 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
