SKU: UCP.212-36.TS.CHAL

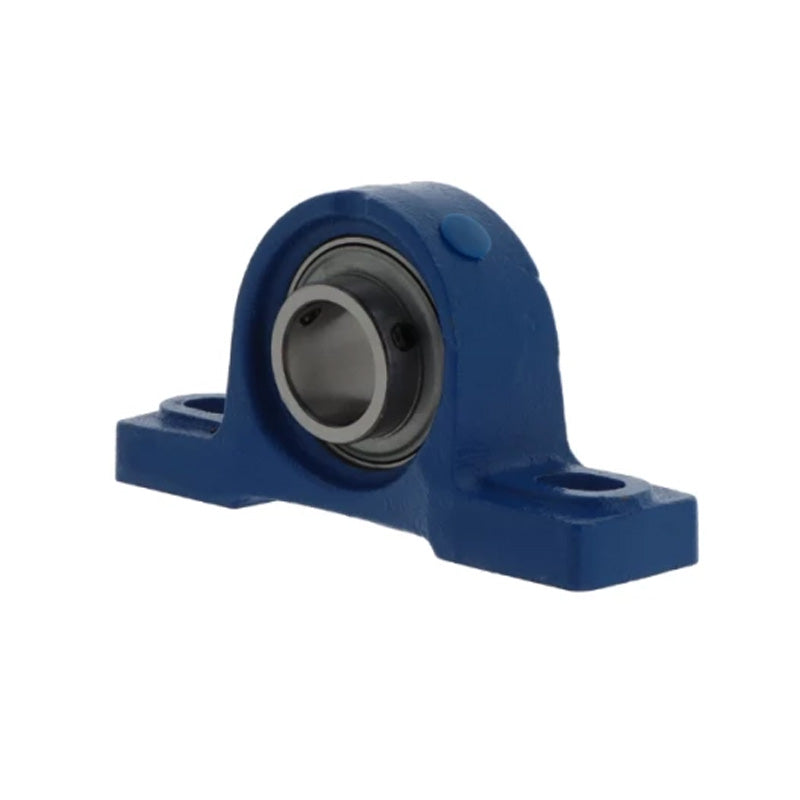

Challenge / FK UCP212-36 Imperial Cast Iron Two Bolt Pillow Block Housing with 2-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP212-36 Imperial Cast Iron Two Bolt Pillow Block Housing with 2-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 15,803.92
Regular price
Sale price
Rs. 15,803.92
Taxes included.
Equivalent to: UCP.212-36
In stock
Price Break
10+
Rs. 14,065.49
19+
Rs. 13,275.29
29+
Rs. 13,117.25
39+
Rs. 12,959.21
49+
Rs. 12,801.18
74+
Rs. 12,643.14
99+
Rs. 11,852.94
199+
Rs. 11,694.90
249+
Rs. 11,536.86
499+
Rs. 11,378.82
999+
Rs. 11,062.74
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.212-36
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Shaft Diameter d | 2-1/4 inch |
|---|---|
| Casting Centre Line Height h | 69.8mm |
| Casting Length a | 241mm |
| Recommended Bolt Centres l | 184mm |
| Casting Width b | 70mm |
| Slot Length s<sub>2</sub> | 23mm |
| Slot Width s<sub>1</sub> | 20mm |
| Foot Height g | 25mm |
| Overall Height w | 138mm |
| Bearing Insert Width Bi | 65.1mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Bolt Size | 5/8 inch |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC212-36 |
| Housing No | P212 |
