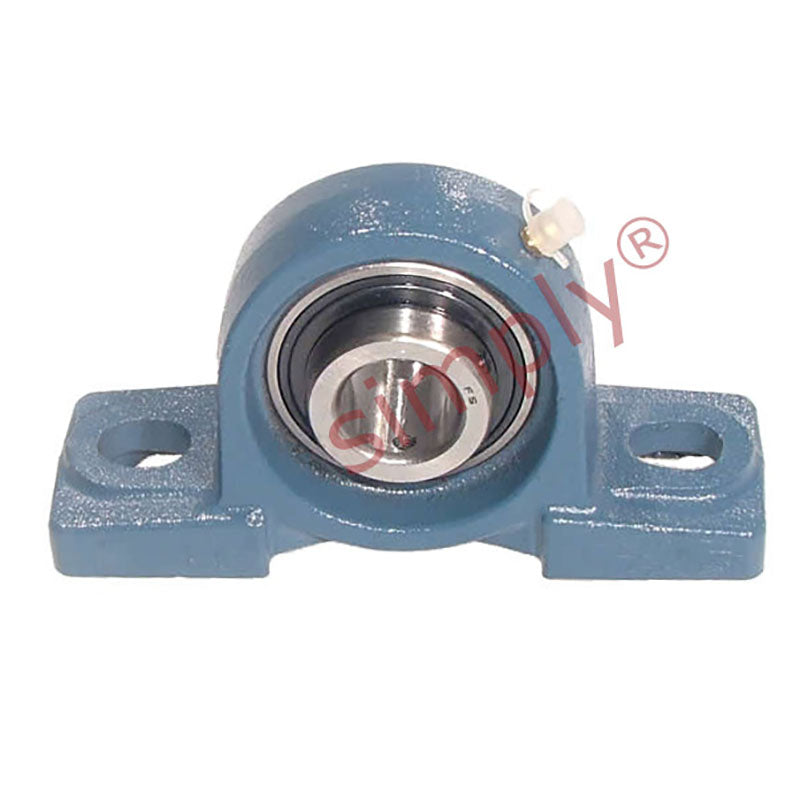

UCP211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert
UCP211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert
Regular price
Rs. 2,316.22
ex VAT
Regular price
Sale price
Rs. 2,316.22
ex VAT
In stock
Price Break
10+
Rs. 2,061.44
19+
Rs. 1,945.62
29+
Rs. 1,922.46
39+
Rs. 1,899.30
49+
Rs. 1,876.14
74+
Rs. 1,852.98
99+
Rs. 1,737.17
199+
Rs. 1,714.00
249+
Rs. 1,690.84
499+
Rs. 1,667.68
999+
Rs. 1,621.35
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| h | 63.5mm |
| a | 219mm |
| e | 171mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 126mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
