SKU: UCP.211-34

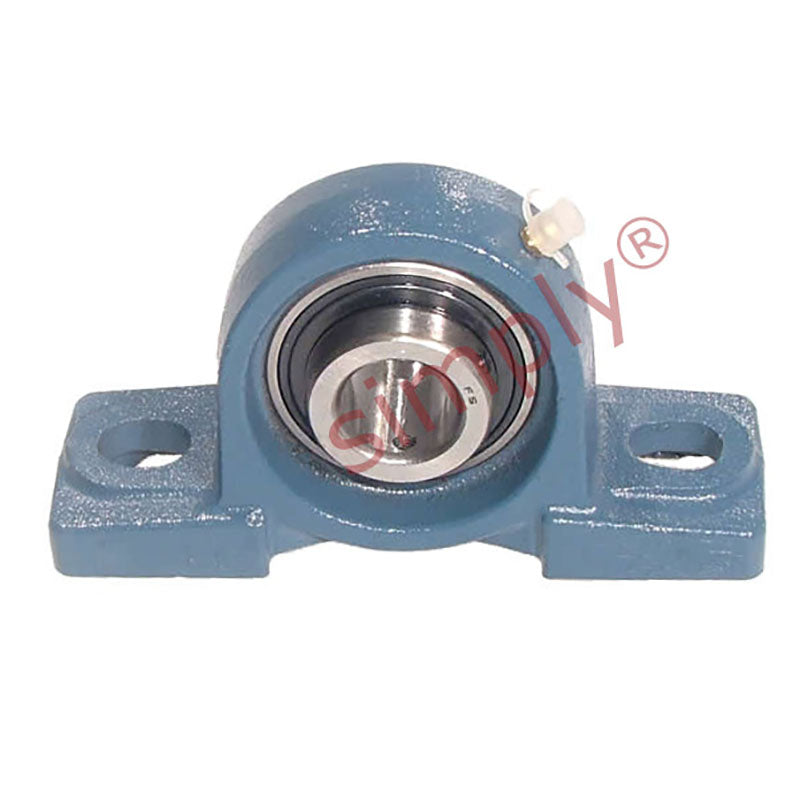

UCP211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert
UCP211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert
Regular price
Rs. 5,019.95
ex VAT
Regular price
Sale price
Rs. 5,019.95
ex VAT
In stock
Price Break
10+
Rs. 4,467.76
19+
Rs. 4,216.76
29+
Rs. 4,166.56
39+
Rs. 4,116.36
49+
Rs. 4,066.16
74+
Rs. 4,015.96
99+
Rs. 3,764.96
199+
Rs. 3,714.76
249+
Rs. 3,664.56
499+
Rs. 3,614.36
999+
Rs. 3,513.97
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| h | 63.5mm |
| a | 219mm |
| e | 171mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 126mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
