SKU: UCP.210

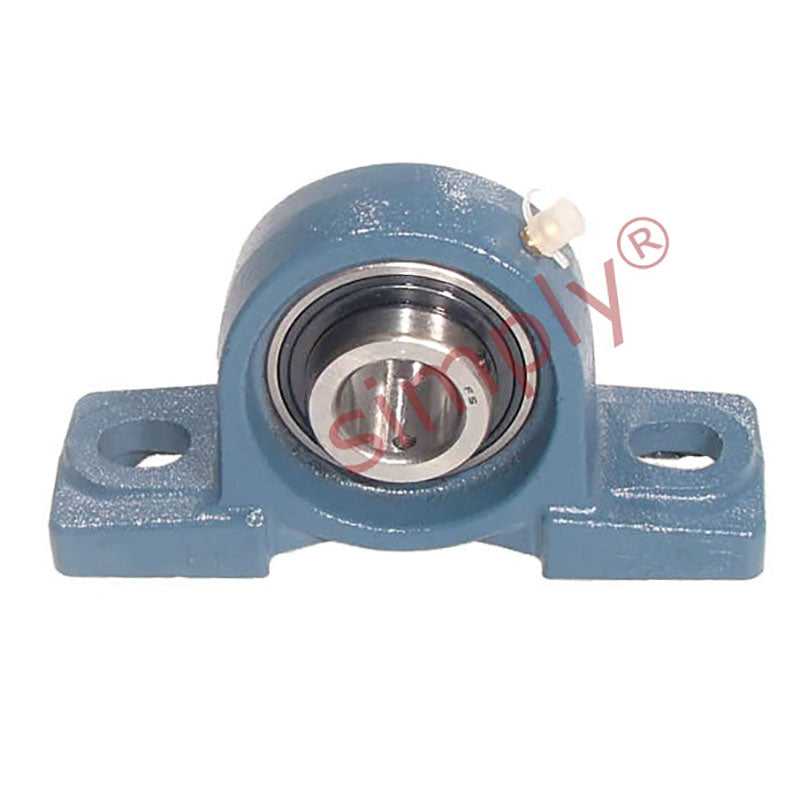

UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
UCP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
Rs. 1,608.31
ex VAT
Regular price
Sale price
Rs. 1,608.31
ex VAT
Equivalent to: NP50
In stock
Price Break
10+
Rs. 1,431.40
19+
Rs. 1,350.98
29+
Rs. 1,334.90
39+
Rs. 1,318.81
49+
Rs. 1,302.73
74+
Rs. 1,286.65
99+
Rs. 1,206.23
199+
Rs. 1,190.15
249+
Rs. 1,174.07
499+
Rs. 1,157.98
999+
Rs. 1,125.82
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 57.2mm |
| a | 206mm |
| e | 159mm |
| b | 60mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 22mm |
| w | 112mm |
| B1 | 51.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
