SKU: UCP.209

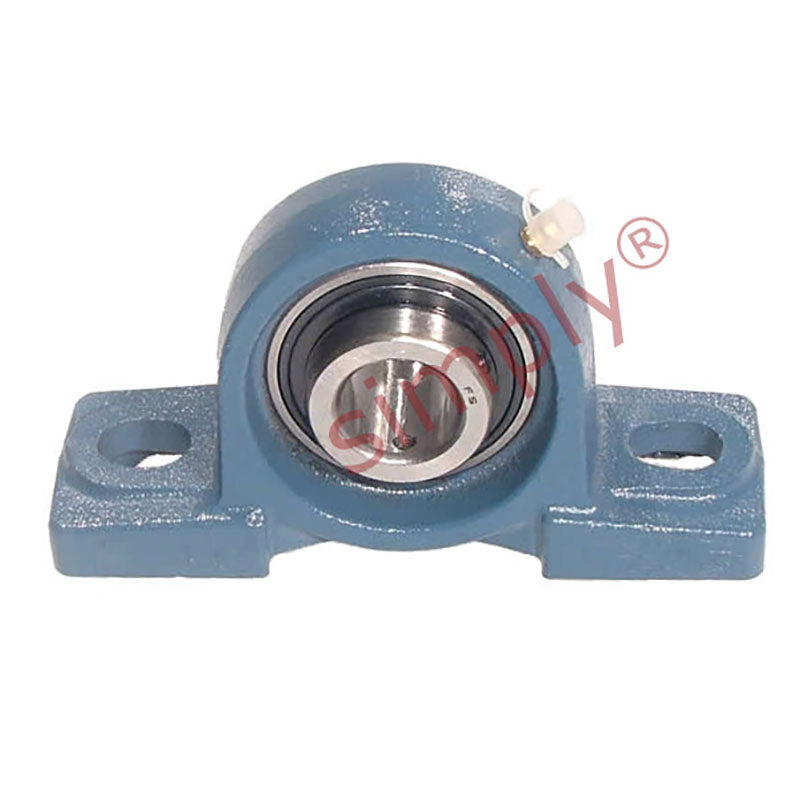

UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
Regular price
Rs. 2,371.94
ex VAT
Regular price
Sale price
Rs. 2,371.94
ex VAT
Equivalent to: NP45
In stock
Price Break
10+
Rs. 2,111.03
19+
Rs. 1,992.43
29+
Rs. 1,968.71
39+
Rs. 1,944.99
49+
Rs. 1,921.27
74+
Rs. 1,897.55
99+
Rs. 1,778.96
199+
Rs. 1,755.24
249+
Rs. 1,731.52
499+
Rs. 1,707.80
999+
Rs. 1,660.36
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 54mm |
| a | 190mm |
| e | 146mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 20mm |
| w | 106mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
