SKU: UCP.207-20.TS.CHAL

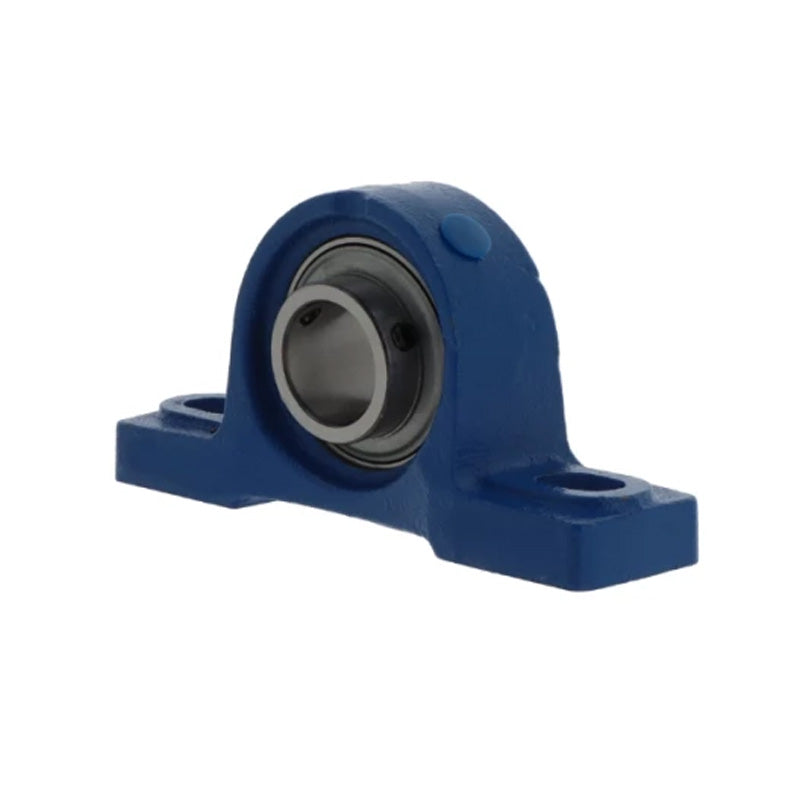

Challenge / FK UCP207-20 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP207-20 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 5,367.83
Regular price
Sale price
Rs. 5,367.83
Taxes included.
Equivalent to: UCP.207-20
In stock
Price Break
10+
Rs. 4,777.37
19+
Rs. 4,508.98
29+
Rs. 4,455.30
39+
Rs. 4,401.62
49+
Rs. 4,347.94
74+
Rs. 4,294.26
99+
Rs. 4,025.87
199+
Rs. 3,972.19
249+
Rs. 3,918.52
499+
Rs. 3,864.84
999+
Rs. 3,757.48
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.207-20
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Casting Centre Line Height h | 47.6mm |
| Casting Length a | 167mm |
| Recommended Bolt Centres l | 127mm |
| Casting Width b | 48mm |
| Slot Length s<sub>2</sub> | 20mm |
| Slot Width s<sub>1</sub> | 17mm |
| Foot Height g | 18mm |
| Overall Height w | 93mm |
| Bearing Insert Width Bi | 42.9mm |
| Back of Bearing to Centre Line n | 17.5mm |
| Bolt Size | 1/2 inch |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2010kg |
| Load Rating (Static) | 1390kg |
| Max Speed | 2400 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC207-20 |
| Housing No | P207 |
