SKU: UCP.206-18.TS.CHAL

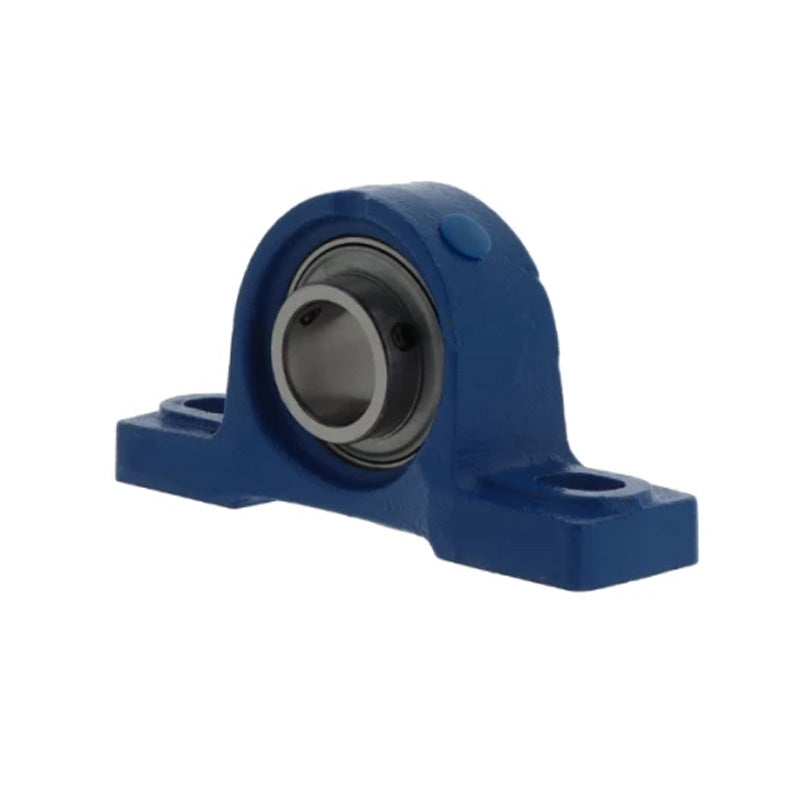

Challenge / FK UCP206-18 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/8 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCP206-18 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/8 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 3,814.96
Regular price
Sale price
Rs. 3,814.96
Taxes included.
Equivalent to: UCP.206-18
In stock
Price Break
10+
Rs. 3,395.31
19+
Rs. 3,204.57
29+
Rs. 3,166.42
39+
Rs. 3,128.27
49+
Rs. 3,090.12
74+
Rs. 3,051.97
99+
Rs. 2,861.22
199+
Rs. 2,823.07
249+
Rs. 2,784.92
499+
Rs. 2,746.77
999+
Rs. 2,670.47
Description
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.206-18
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| Shaft Diameter d | 1-1/8 inch |
|---|---|
| Casting Centre Line Height h | 42.9mm |
| Casting Length a | 165mm |
| Recommended Bolt Centres l | 121mm |
| Casting Width b | 48mm |
| Slot Length s<sub>2</sub> | 20mm |
| Slot Width s<sub>1</sub> | 17mm |
| Foot Height g | 17mm |
| Overall Height w | 84mm |
| Bearing Insert Width Bi | 38.1mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Bolt Size | 1/2 inch |
| Insert No | UC206-18 |
| Housing No | P206 |
