SKU: UCP.206-18

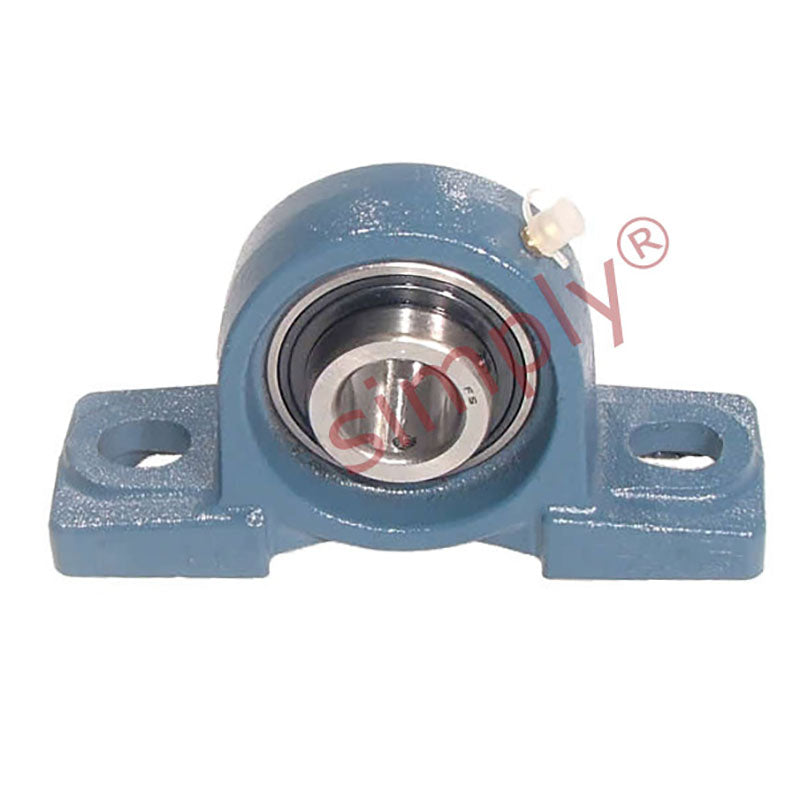

UCP206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
UCP206-18 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/8 inch Bore Insert
Regular price
Rs. 1,204.33
ex VAT
Regular price
Sale price
Rs. 1,204.33
ex VAT
Equivalent to: NP1.1/8
In stock
Price Break
10+
Rs. 1,071.85
19+
Rs. 1,011.64
29+
Rs. 999.59
39+
Rs. 987.55
49+
Rs. 975.51
74+
Rs. 963.46
99+
Rs. 903.25
199+
Rs. 891.20
249+
Rs. 879.16
499+
Rs. 867.12
999+
Rs. 843.03
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP1.1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| h | 42.9mm |
| a | 165mm |
| e | 121mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 18mm |
| w | 83mm |
| B1 | 38.1mm |
| n | 15.9mm |
| Bolt Size | M14 |
| Weight | 0.79 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
