SKU: UCP.203

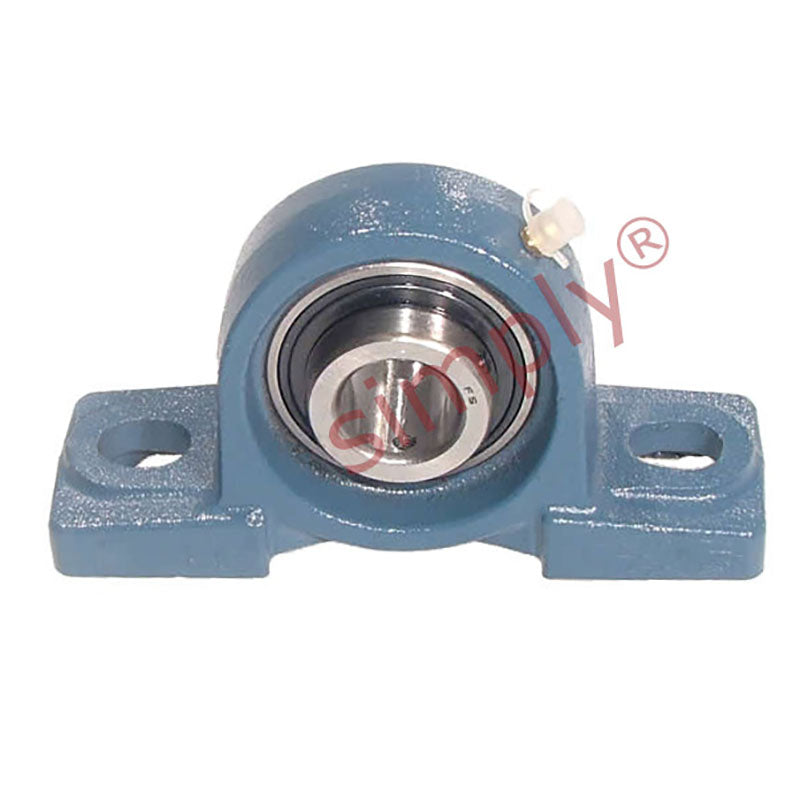

UCP203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert
UCP203 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert
Regular price
Rs. 908.00
ex VAT
Regular price
Sale price
Rs. 908.00
ex VAT
Equivalent to: NP17
In stock
Price Break
10+
Rs. 808.12
19+
Rs. 762.72
29+
Rs. 753.64
39+
Rs. 744.56
49+
Rs. 735.48
74+
Rs. 726.40
99+
Rs. 681.00
199+
Rs. 671.92
249+
Rs. 662.84
499+
Rs. 653.76
999+
Rs. 635.60
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP17
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 17mm |
|---|---|
| h | 30.2mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
| Rec max speed | 8800 rpm |
