SKU: UCLP209

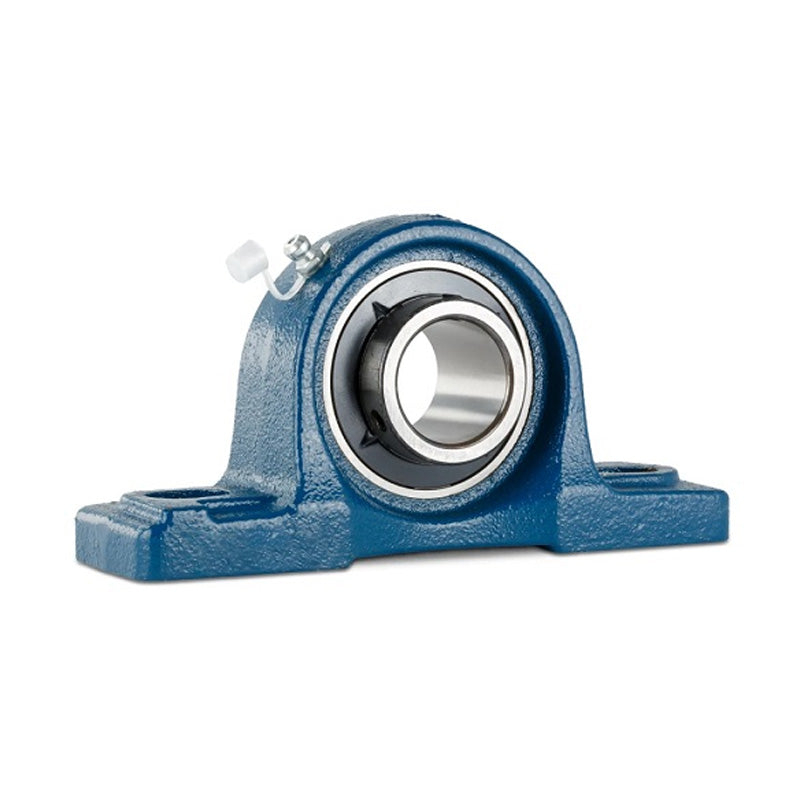

UCLP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
UCLP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Insert
Regular price
Rs. 4,037.71
Regular price
Sale price
Rs. 4,037.71
Taxes included.
In stock
Price Break
10+
Rs. 3,593.56
19+
Rs. 3,391.68
29+
Rs. 3,351.30
39+
Rs. 3,310.92
49+
Rs. 3,270.55
74+
Rs. 3,230.17
99+
Rs. 3,028.28
199+
Rs. 2,987.91
249+
Rs. 2,947.53
499+
Rs. 2,907.15
999+
Rs. 2,826.40
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCLP
- Bolt Hole Centres:
- 146mm

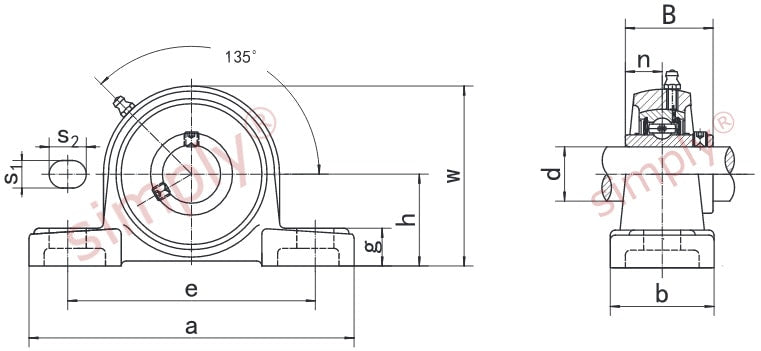

Technical
Technical
| d | 45mm |
|---|---|
| h | 52.39mm |
| a | 190mm |
| e | 146mm |
| b | 54mm |
| s1 | 17mm |
| s2 | 20mm |
| g | 20mm |
| w | 104mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC209 |
| Housing no | LP209 |
| Weight | 2.03 kg |
