SKU: UCHA214

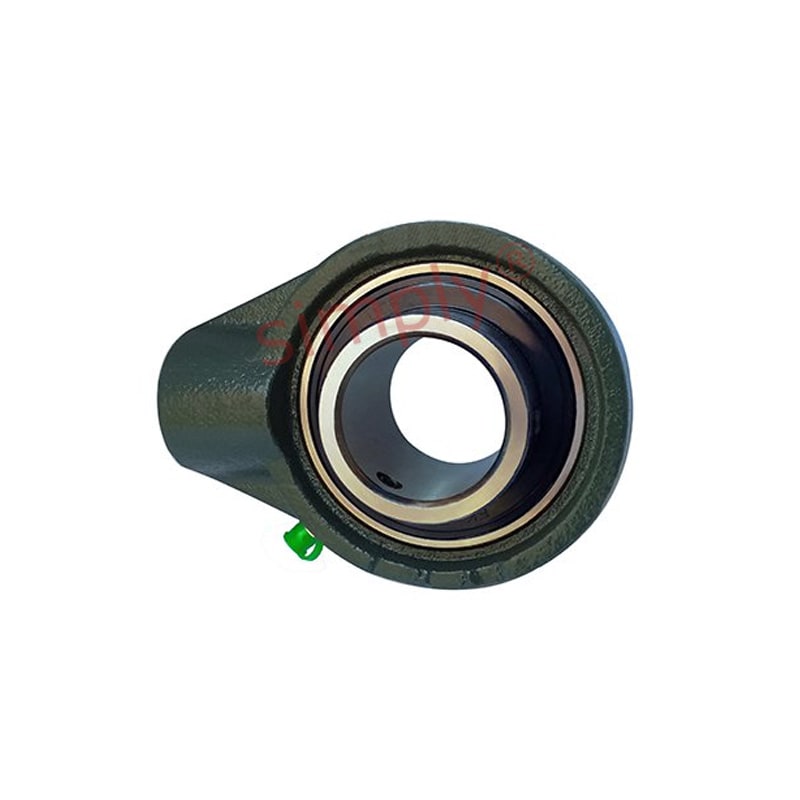

UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
UCHA214 Metric Cast Iron Hanger Bearing Unit with 70mm Bore Insert
Regular price
Rs. 23,994.56
Regular price
Sale price
Rs. 23,994.56
Taxes included.
In stock
Price Break
10+
Rs. 21,355.16
19+
Rs. 20,155.43
29+
Rs. 19,915.48
39+
Rs. 19,675.54
49+
Rs. 19,435.59
74+
Rs. 19,195.65
99+
Rs. 17,995.92
199+
Rs. 17,755.97
249+
Rs. 17,516.03
499+
Rs. 17,276.08
999+
Rs. 16,796.19
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCHA
Technical
Technical
| d | 70mm |
|---|---|
| h | 117mm |
| w | 200mm |
| b | 166mm |
| c | 9.5mm |
| a | 70mm |
| s | G1-1/2 |
| l | 32mm |
| B | 74.6mm |
| n | 30.2mm |
| Bearing no | UC214 |
| Housing no | HA214 |
| Weight | 5.457 kg |
