SKU: UCHA210-30

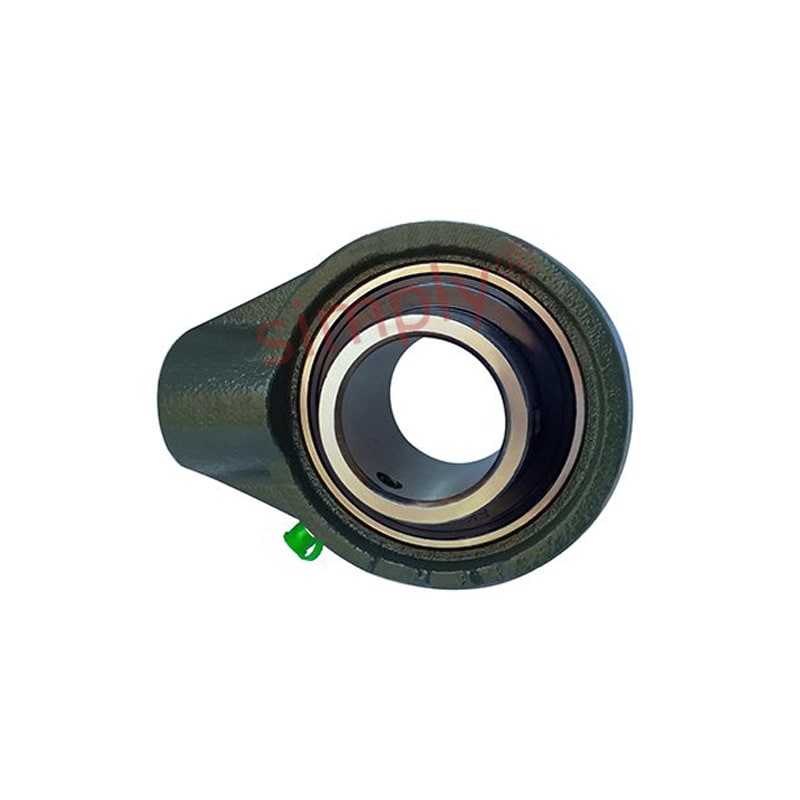

UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
UCHA210-30 Imperial Cast Iron Hanger Bearing Unit with 1-7/8 inch Bore Insert
Regular price
Rs. 6,183.31
Regular price
Sale price
Rs. 6,183.31
Taxes included.
In stock
Price Break
10+
Rs. 5,503.15
19+
Rs. 5,193.98
29+
Rs. 5,132.15
39+
Rs. 5,070.31
49+
Rs. 5,008.48
74+
Rs. 4,946.65
99+
Rs. 4,637.48
199+
Rs. 4,575.65
249+
Rs. 4,513.82
499+
Rs. 4,451.98
999+
Rs. 4,328.32
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCHA

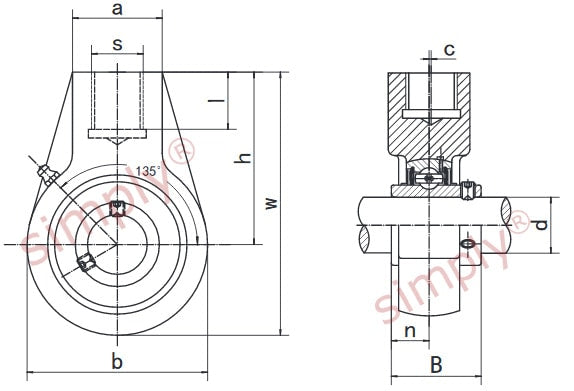

Technical
Technical
| d | 1-7/8 inch |
|---|---|
| h | 3-17/64 inch |
| w | 5-19/32 inch |
| b | 4-41/64 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UC210-30 |
| Housing no | HA210 |
| Weight | 2.11 kg |
