SKU: UCFX.20-64

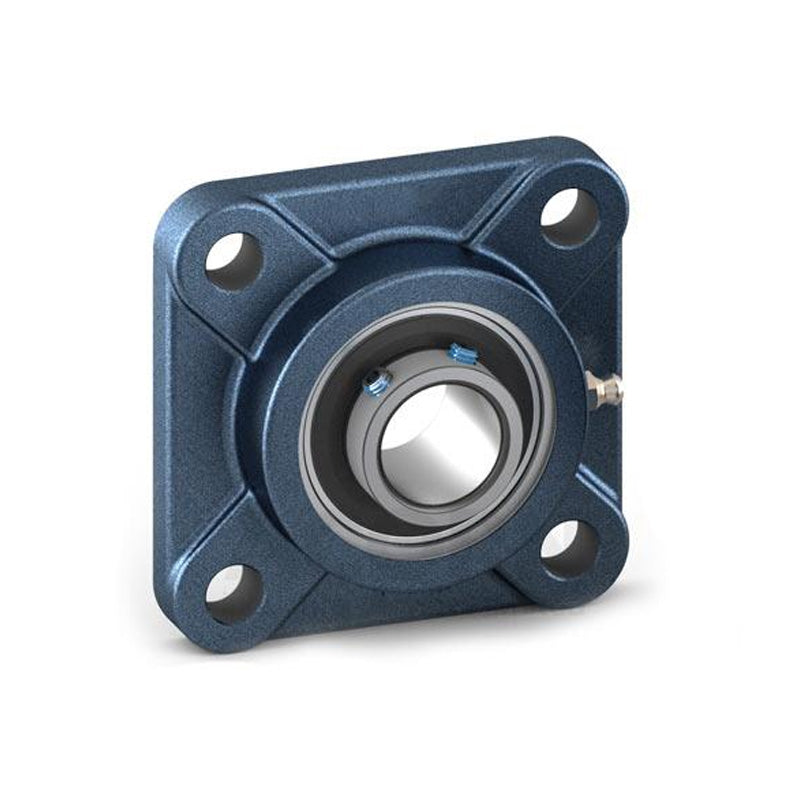

UCFX20-64 Imperial Four Bolt Cast Iron Square Housing with 4 inch Bore Insert
UCFX20-64 Imperial Four Bolt Cast Iron Square Housing with 4 inch Bore Insert
Regular price
Rs. 58,845.17
ex VAT
Regular price
Sale price
Rs. 58,845.17
ex VAT
In stock
Price Break
10+
Rs. 52,372.20
19+
Rs. 49,429.94
29+
Rs. 48,841.49
39+
Rs. 48,253.04
49+
Rs. 47,664.59
74+
Rs. 47,076.14
99+
Rs. 44,133.88
199+
Rs. 43,545.43
249+
Rs. 42,956.97
499+
Rs. 42,368.52
999+
Rs. 41,191.62
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- UCFX
- Bolt Hole Centres:
- 211mm
Technical
Technical
| d | 4 inch |
|---|---|
| a | 268mm |
| e | 211mm |
| i | 59mm |
| g | 31mm |
| L | 97mm |
| s | 31mm |
| Z | 127.3mm |
| Bi | 117.5mm |
| n | 49.2mm |
| Bolt Size | 27mm |
| Weight | 18.1 kg |
| Dynamic load | 13300 kgf |
| Static load | 10500 kgf |
